CFX-A/B optics PMMA lens for linear lighting museums reading lights compact torches head lamps CREE XEG XPE Seoul Z5P LG3535 OSRAM3131 LEDs(HX-15P Series)

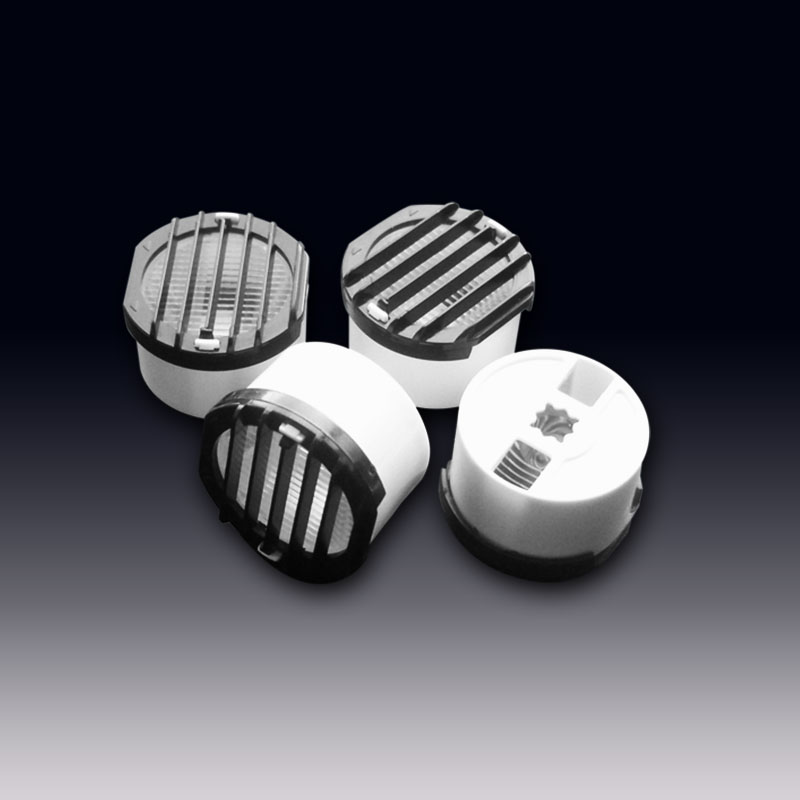

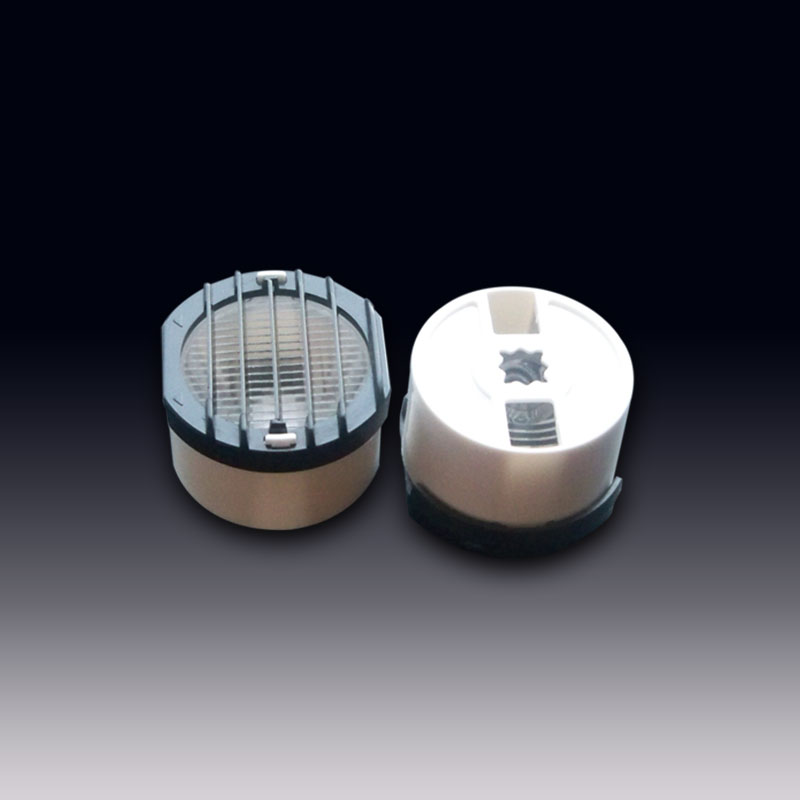

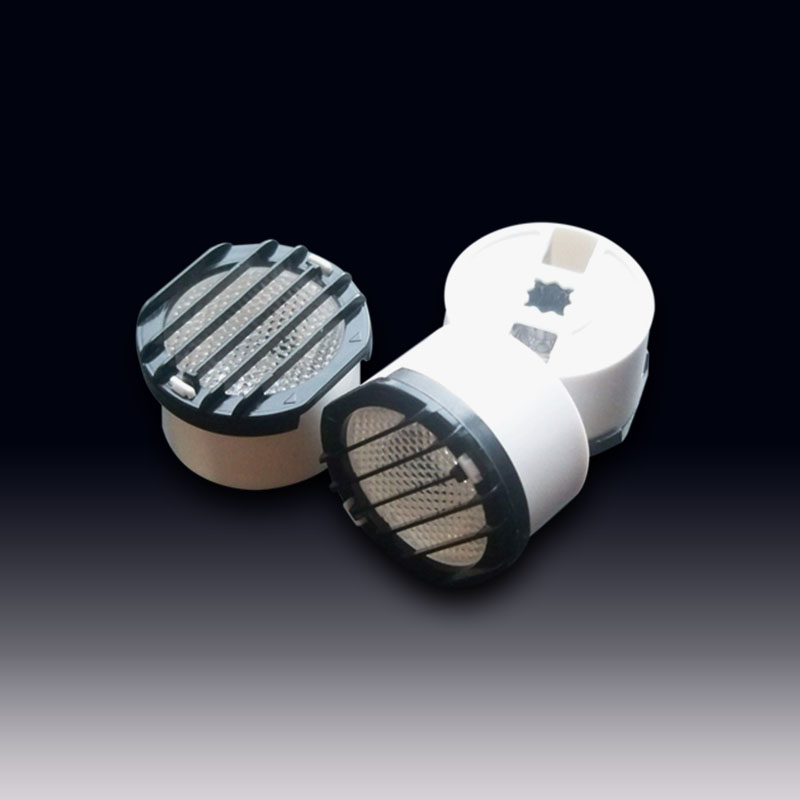

D17.0x H10.0mm with holder .HX-15PH series of lenses, measuring less than 17 mm in diameter and less than 10 mm tall, All subfamilies have the same dimensions and come preassembled in lightweight durable holders with fastening tape that makes their installation fast and easy. HX-15PH family has a wide selection of beams from narrow to wide flood.


Product Description

Diameter 17.0mm easily sealable TIR-lenses for up to 3535 ,3030,2525 size LED packages.
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;


# Part No.(Model) DIM(mm) FWHM(deg) For LEDs Material
1 HX-15PH-15 D17.0 * H10.0 12° 2525,3030,3535 LEDs PC +PMMA
2 HX-15PH-25L D17.0 * H10.0 25° 2525,3030,3535 LEDs PC +PMMA
3 HX-15PH-30L D17.0 * H10.0 30° 2525,3030,3535 LEDs PC +PMMA
4 HX-15PH-45L D17.0 * H10.0 45° 2525,3030,3535 LEDs PC +PMMA
5 HX-15PH-60L D17.0 * H10.0 60° 2525,3030,3535 LEDs PC +PMMA
6 HX-15PH-1545 D17.0 * H10.0 15(±5) x 45(±5) 2525,3030,3535 LEDs PC +PMMA
7 HX-15PHB-15 D17.0 * H10.0 12° 2525,3030 LEDs PC +PMMA
8 HX-15PHB-25L D17.0 * H10.0 25° 2525,3030 LEDs PC +PMMA
9 HX-15PHB-30L D17.0 * H10.0 30° 2525,3030 LEDs PC +PMMA
10 HX-15PHB-45L D17.0 * H10.0 45° 2525,3030 LEDs PC +PMMA
11 HX-15PHB-60L D17.0 * H10.0 60° 2525,3030 LEDs PC +PMMA
12 HX-15PHB-1545 D17.0 * H10.0 15(±5) x 45(±5) 2525,3030 LEDs PC +PMMA
