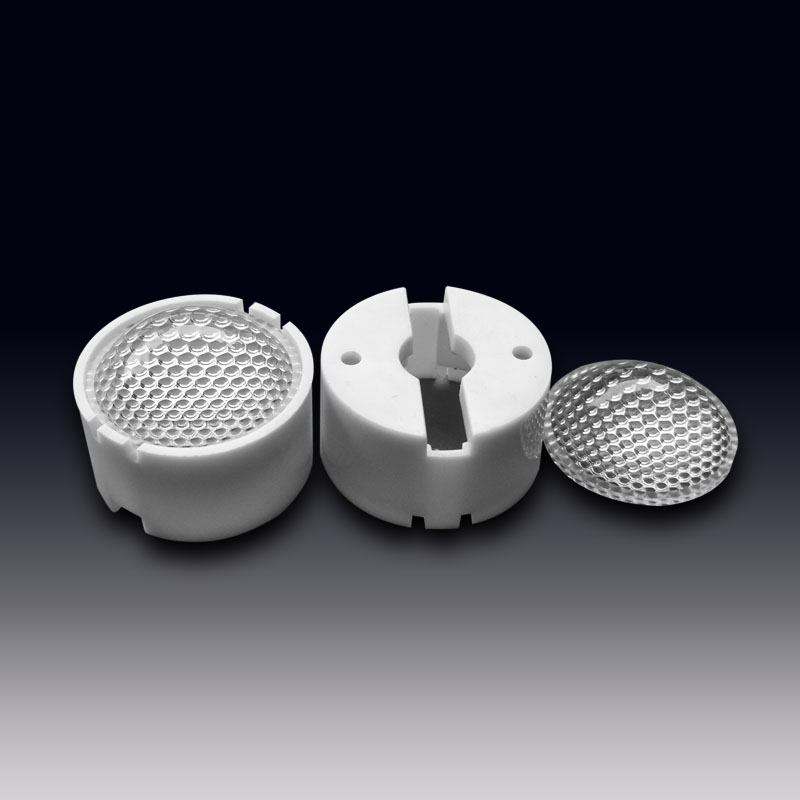

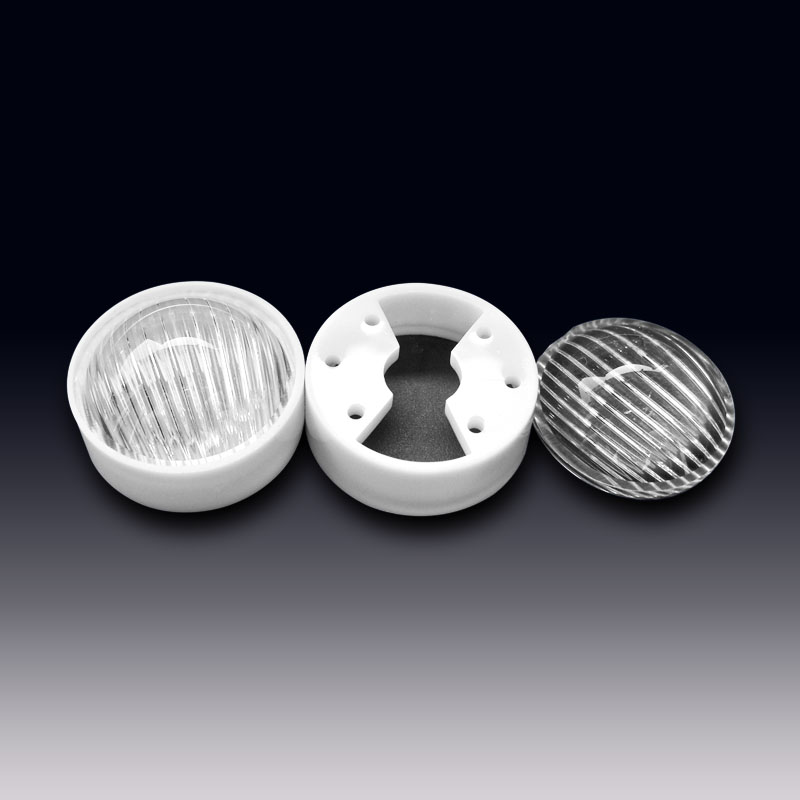

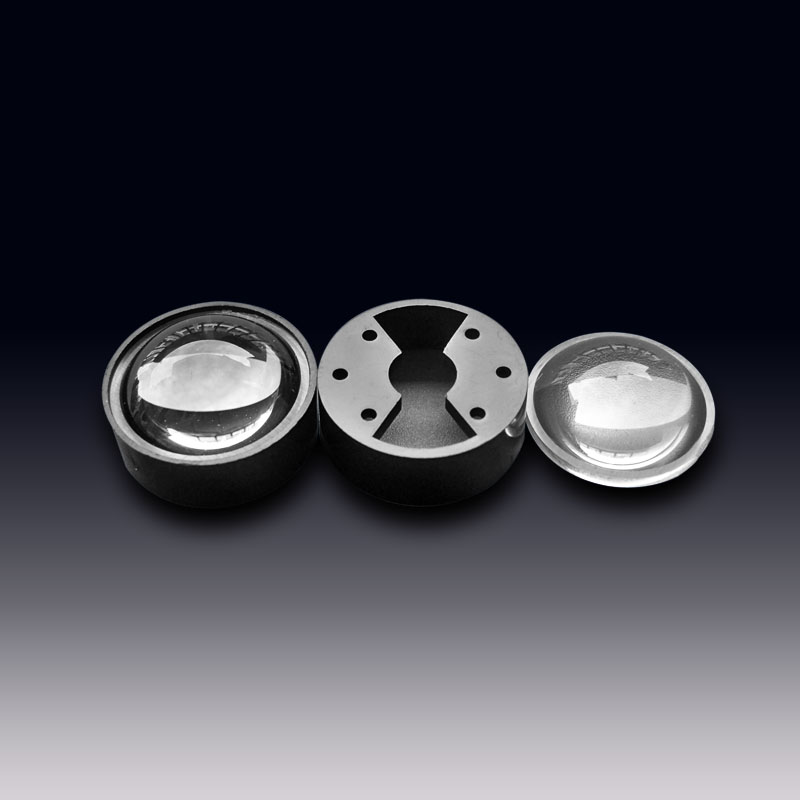

∅23mm 5°, 45°, 60° PMMA PC optics LED lenses for Seoul P4 Prolight Lumileds RGB LEDs

Available in narrow and ultra-narrow beams, offering unsurpassed light quality for a variety of lighting applications. A narrow beam combined with over 90% efficiency means more light for tough tasks in demanding environments. The Ultra Narrow Light PMMA PC LED Lens Series is designed to have a tight uniform beam and a maximum candela peak. Perfectly compatible with XHP35, XHP50, OSRAM CSP, P7, P8 LEDs. Widely used in basketball court lighting, gymnasium lighting, badminton court lighting, volleyball court lighting, underwater lighting, outdoor landscape lighting (or lens), security and traffic display lighting (or lens), light and shadow effect display, highway light and shadow warning lighting, surgical lamp lighting, and stage lighting.


Product Description

∅23mm 5°, 45°, 60° PMMA PC optics LED lenses for Seoul P4 Prolight Lumileds RGB LEDs .

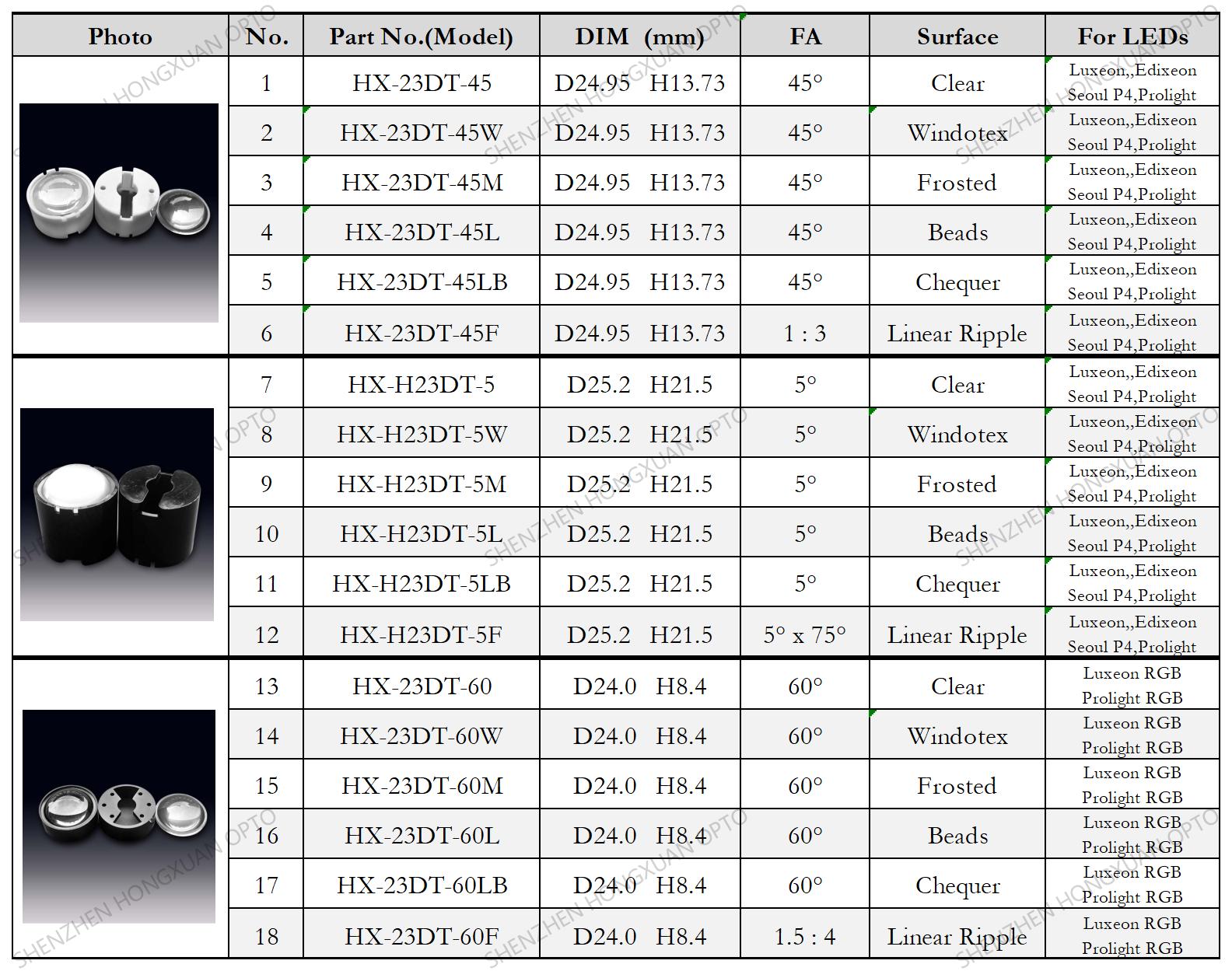

Product Selection Guide :

lumileds RGB LED LENS SEOUL P4

Product Download

Product Application

63. Neutral Density Filters: ND2-ND400 Filter Set This neutral density filter set (52mm diameter) includes ND2, ND4, ND8, ND16, ND32, ND64, ND100, ND200, ND400 filters, reducing light intensity without altering color. Made from optical glass (multi-coated), they prevent lens flare and enable long-exposure photography. Technical specs: 0.3-2.6 density (1-400X reduction), scratch-resistant coating, and metal filter ring. 64. LED Lens 5050: 160° Wide-Angle Lens Designed for 5050 SMD LEDs, this 160° wide-angle PMMA lens (10mm x 5mm) creates uniform diffused light, ideal for LED strips or panels. The frosted surface reduces glare, with 88% light transmittance. Technical specs: ±0.1mm tolerance, heat resistance up to 75°C, and reflow soldering compatibility. Suitable for ceiling lights, office panels, or home decor.

65. Linear Lighting Lens: 2835 Linear Lens (1m) This 1m linear lens for 2835 LED strips features a prismatic design (120° beam angle) to enhance light uniformity, reducing hotspots by 90%. Made from UV-stabilized PMMA (92% transmittance), it fits 10mm wide strips. Technical specs: 2mm thickness, snap-in installation, and compatibility with IP65 strip lights. Used in under-cabinet lighting, channel letters, or architectural profiles. 66. LED Magnifying Glass: 5X Magnifier with LED Strip This 5X LED magnifying glass features a 100mm optical glass lens and a 12-LED strip (6000K) for bright, shadow-free illumination. The adjustable gooseneck (360° rotation) and stand allow hands-free use in workshops or reading. Technical details: 200mm working distance, 500lm brightness, and 110-240V AC power. Suitable for electronics repair, jewelry making, or hobby crafts.

67. Telescope Mirror 16-inch: 16-inch Parabolic Primary Mirror This 16-inch (406mm) parabolic primary mirror (f/4.5 focal ratio) is made from borosilicate glass, coated with aluminum (96% reflectivity) and protected by SiO2. Ideal for large Dobsonian telescopes, it delivers sharp views of deep-sky objects. Technical specs: 19mm thickness, ±1/8 wave surface accuracy, and 12kg weight. Requires professional collimation for optimal performance. 68. Air Optix Contact Lenses: Aqua Comfort Plus Air Optix Aqua Comfort Plus contact lenses use HydraGlyde Moisture Matrix, providing 98% oxygen permeability for 30-day continuous wear. The spherical design (-10.00 to +6.00D) features a smooth edge for comfort, with 33% water content. Technical specs: UV blocking, FDA-approved, and blister packaging (6 pairs/box). Reduces dryness for extended wearers.
