9in1 Matrix 136mm Highbay Lighting PMMA PC LED Lens for CREE XHP35, XML | OSRAM P7 Square 3535 5050 LEDs (HX-F136x9D Series)

All subfamilies feature the same dimensions, excellent optical performance, and high cost-effectiveness. They offer a wide selection of beams, ranging from narrow to wide flood. Perfectly compatible with CREE XQE, XPE, XHP35, XPL; XML, Square, P7, P8; Seoul Z5P, Luxeon T; Samsung 3535; 5050, 3030, 3535 LEDs, etc. Widely used in basketball court lighting, gymnasium lighting, badminton court lighting, volleyball court lighting, underwater lighting, outdoor landscape lighting (or lens), security equipment, traffic display lighting (or lens), electronic components, automotive lamp lenses, beam lamp lenses, surgical shadowless lamps, and stage lighting.


Product Description

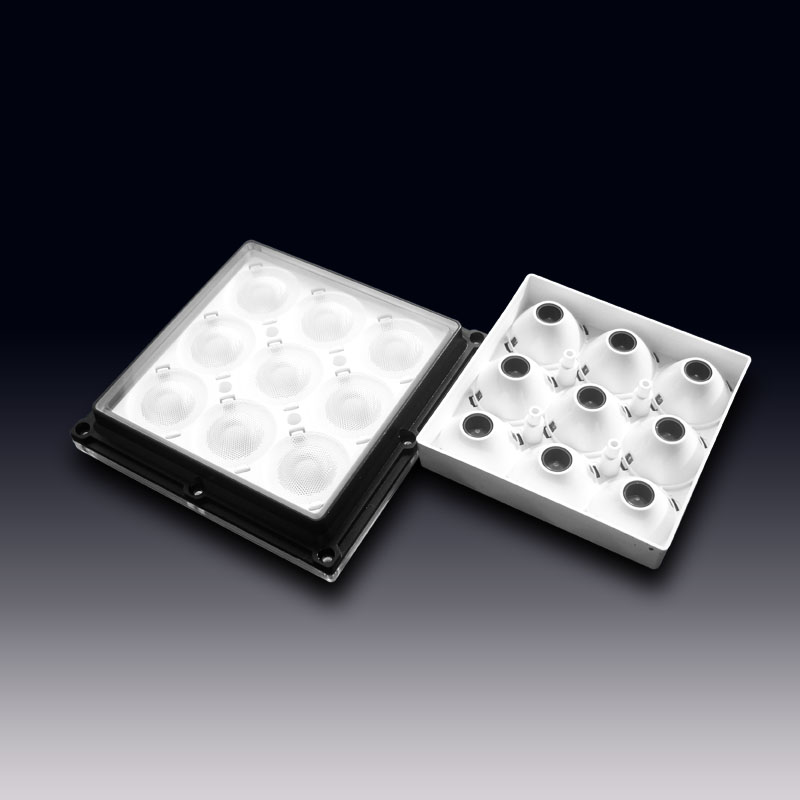

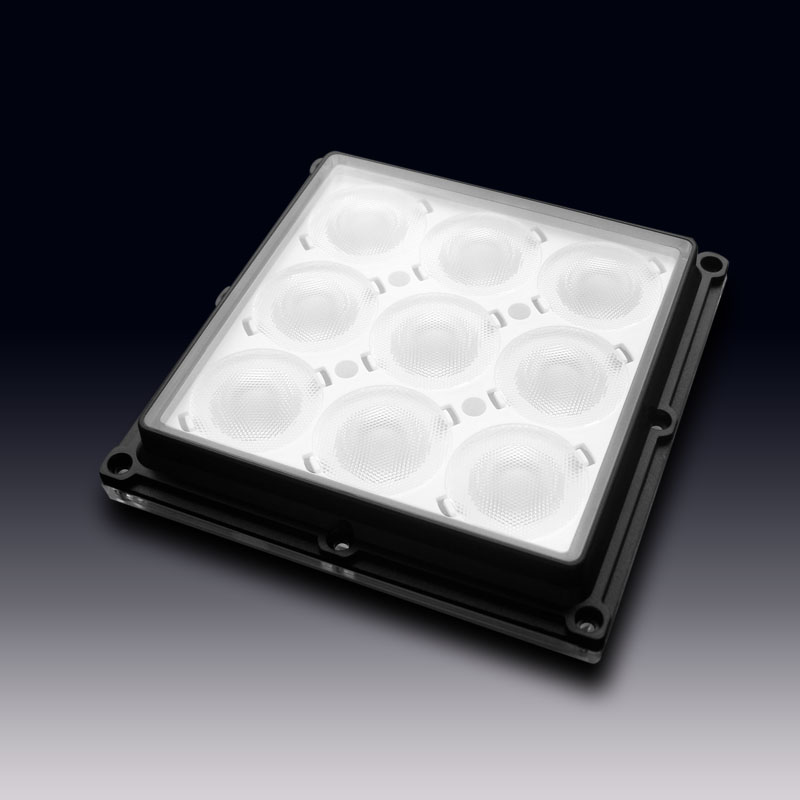

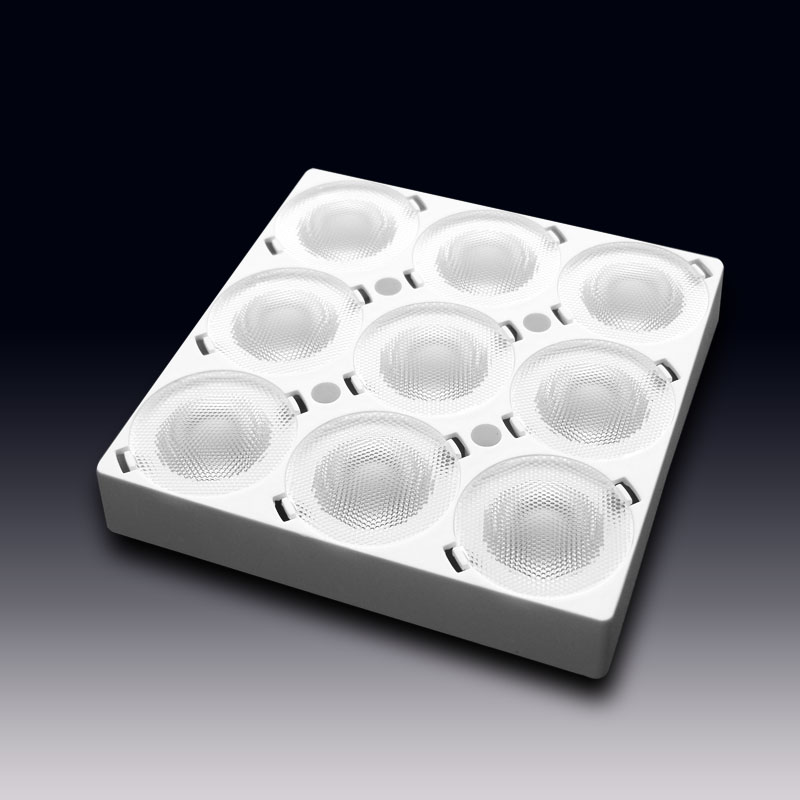

9in1 Matrix 136mm Highbay Lighting PMMA PC LED Lens for CREE XHP35, XML | OSRAM P7 Square 3535 5050 LEDs .

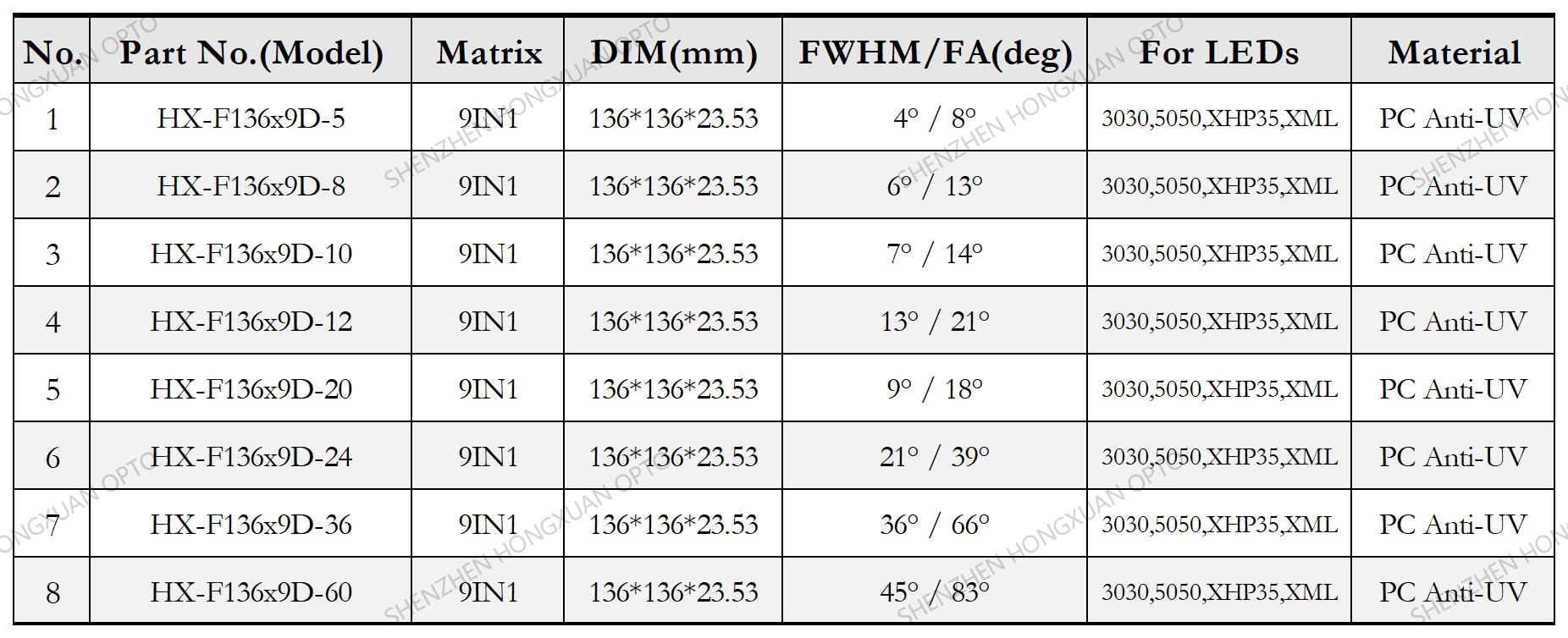

Product Selection Guide :

3030 3535 5050 RGBW CREE LED LENS

Product Download

Product Application

87. LED Array: 10x10 LED Array with Lens Plate This 10x10 LED array (100x 3535 SMDs) delivers 8000lm at 5000K, featuring a PMMA lens plate (160° beam angle) for uniform illumination. The aluminum heat sink ensures 50,000-hour lifespan, with 100-277V AC input. Technical specs: 100W power, IP65 rating, and 300x300mm size. Ideal for large-area lighting, such as sports courts, parking lots, or industrial yards. 88. 3535 LED: 3535 SMD LED with 25° Lens The 3535 SMD LED (70lm, 4000K) features an integrated 25° lens, creating a narrow beam for spotlights or track lighting. With 3.4V forward voltage and 110lm/W efficiency, it supports high-density PCB layouts. Technical details: 50,000-hour lifespan, RoHS compliance, and solderable terminals. Perfect for downlights, retail displays, or accent lighting.

89. PVS-14 Objective Lens: 50mm F/1.2 Objective The PVS-14 objective lens (50mm, f/1.2) enhances low-light performance for PVS-14 night vision monoculars, increasing light intake by 30%. The multi-coated glass reduces glare, with a threaded mount for easy replacement. Technical specs: compatible with Gen 2/3 image intensifier tubes, 120g weight, and scratch-resistant coating. Improves visibility in starlight or moonlight conditions. 90. Cold Mirror Optics: 80mm Cold Mirror for Lighting This 80mm cold mirror reflects visible light (95%) while transmitting infrared (IR) radiation, reducing heat in lighting systems. Made from glass with dielectric coating, it’s ideal for stage lights, projectors, or museum displays. Technical specs: 400-700nm reflection, 800-1600nm transmission, and 3mm thickness. Maintains light intensity while lowering ambient temperature.

91. Plastic Lens: 35mm Polycarbonate Lens This 35mm polycarbonate lens (focal length 50mm) offers impact resistance (10x stronger than glass) with 88% light transmittance, ideal for automotive or industrial applications. The plano-convex design focuses light, while the UV-stabilized material resists yellowing. Technical specs: 2mm thickness, heat resistance up to 120°C, and compatibility with injection molding. 92. Sapphire Glass: 50mm Sapphire Lens This 50mm sapphire glass lens (focal length 100mm) features 99% light transmittance and Mohs 9 hardness (scratch-resistant), ideal for high-temperature or harsh environments. The convex design (5mm thickness) focuses light for lasers, sensors, or medical devices. Technical specs: thermal conductivity 28W/m·K, chemical resistance, and compatibility with IR wavelengths.
