Square 136mm 16in1 Highbay Lighting PMMA PC LED Lens for CREE XHP35, XML | OSRAM P7 Square 3535 5050 LEDs (HX-F136x16D Series)

All subfamilies feature the same dimensions, excellent optical performance, and high cost-effectiveness. They offer a wide selection of beams, ranging from narrow to wide flood. Perfectly compatible with CREE XQE, XPE, XHP35, XPL; XML, Square, P7, P8; Seoul Z5P, Luxeon T; Samsung 3535; 5050, 3030, 3535 LEDs, etc. Widely used in basketball court lighting, gymnasium lighting, badminton court lighting, volleyball court lighting, underwater lighting, outdoor landscape lighting (or lens), security equipment, traffic display lighting (or lens), electronic components, automotive lamp lenses, beam lamp lenses, surgical shadowless lamps, and stage lighting.


Product Description

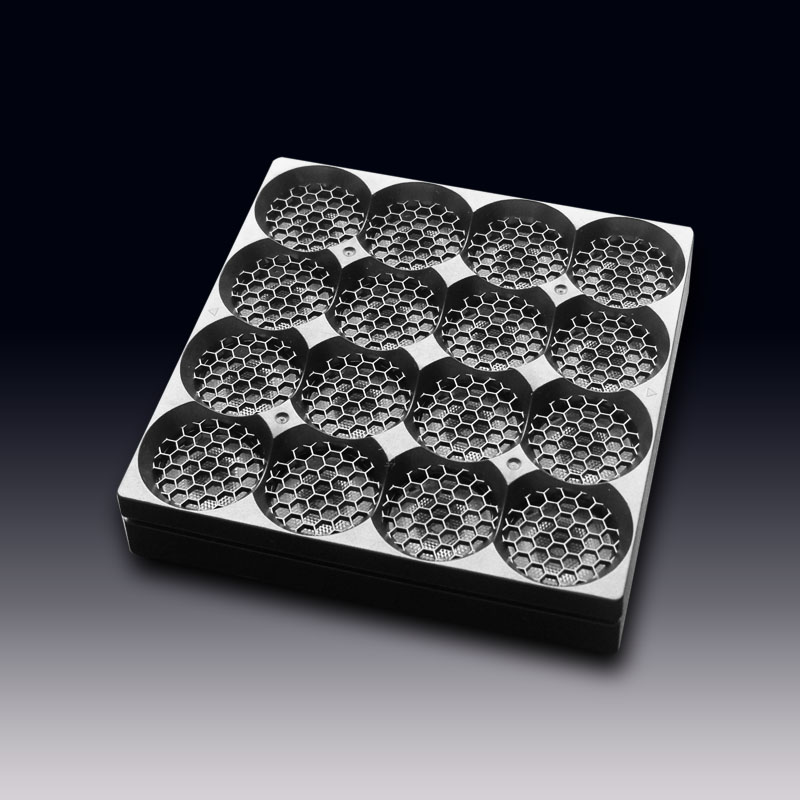

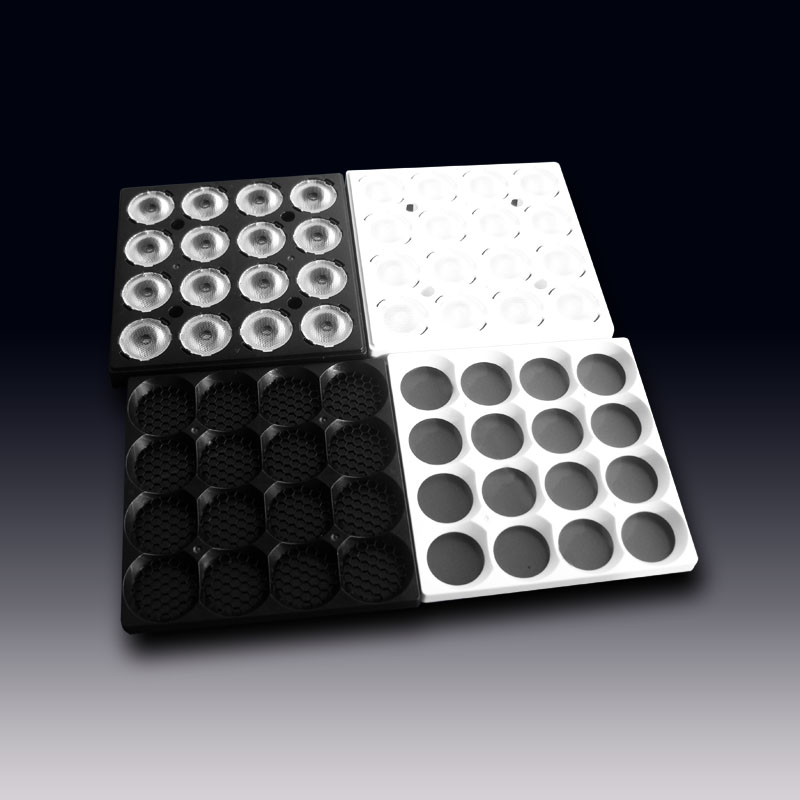

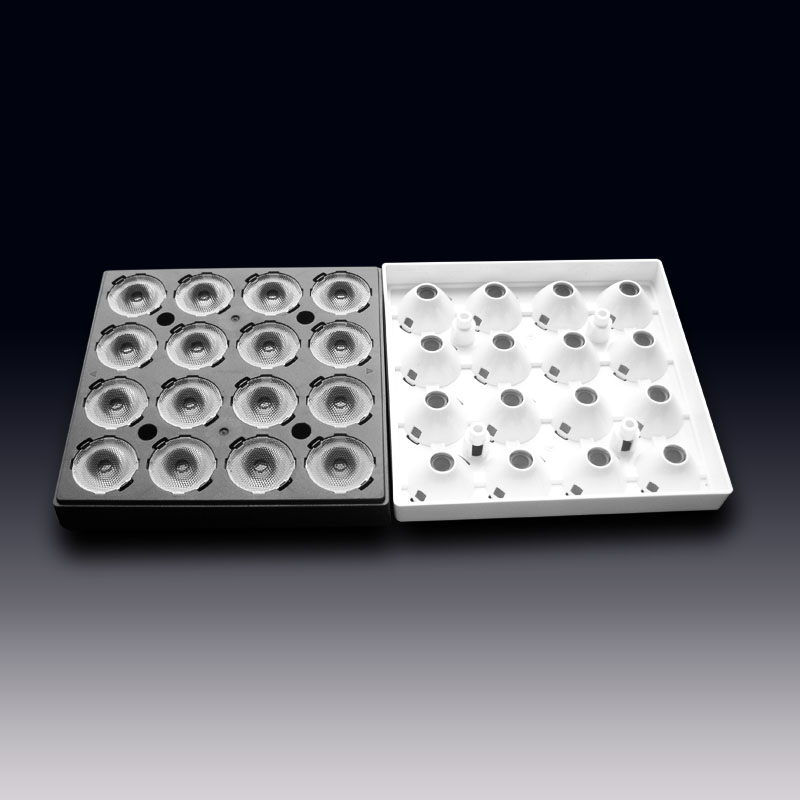

Square 136mm 16in1 Highbay Lighting PMMA PC LED Lens for CREE XHP35, XML | OSRAM P7 Square 3535 5050 LEDs .

Product Selection Guide :

OSRAM 3030 3535 5050 RGBW CREE LED LENS

Product Download

Product Application

93. Small Reflector for LED: 15mm Aluminum Reflector This 15mm aluminum reflector (elliptical design) enhances light output for 3mm/5mm LEDs, achieving 85% reflection efficiency. The snap-fit design mounts directly to PCBs, with heat resistance up to 150°C. Technical specs: 0.2mm thickness, 60° beam angle, and compatibility with through-hole or SMD LEDs. Used in indicators, flashlights, or small fixtures. 94. Projection Dome: 100mm Projection Dome Lens The 100mm projection dome lens (hemispherical) creates 180° panoramic projections, ideal for planetariums or immersive displays. Made from optical-grade PMMA (90% transmittance), it reduces distortion to <2%. Technical specs: 50mm height, anti-reflective coating, and compatibility with short-throw projectors. Enables 360° visual experiences in museums, theaters, or VR setups.

95. Lens Glass: 36mm Borosilicate Glass Lens This 36mm borosilicate glass lens (focal length 75mm) features high thermal shock resistance, suitable for high-temperature applications (up to 300°C). The convex design (4mm thickness) focuses light for ovens, furnaces, or industrial sensors. Technical specs: 99% light transmittance, chemical resistance, and ±0.1mm dimensional accuracy. 96. Potassium Bromide: KBr Optical Window A potassium bromide (KBr) optical window (50mm x 50mm x 5mm) transmits infrared light (2-25μm), ideal for FTIR spectroscopy or thermal imaging. The hygroscopic material requires dry storage, with 90% IR transmittance. Technical specs: 1/10 wave surface flatness, anti-static coating, and compatibility with vacuum systems.

97. Reticle: Illuminated Rifle Scope Reticle Lens This illuminated reticle lens (25mm diameter) for rifle scopes features a milling crosshair (red/green illumination), enhancing target acquisition in low light. The multi-coated glass reduces glare, with 0.5MOA adjustment increments. Technical specs: compatible with 1in diameter scopes, CR2032 battery (500-hour life), and scratch-resistant coating. 98. Zero Distortion Lens: 50mm Aspherical Zero Distortion Lens This 50mm aspherical lens (focal length 100mm) corrects spherical aberration, achieving <0.1% distortion for panoramic imaging. Made from optical glass (multi-coated), it’s ideal for security cameras or VR headsets. Technical specs: 98% light transmittance, ±0.05mm surface precision, and compatibility with 16:9 image sensors.
