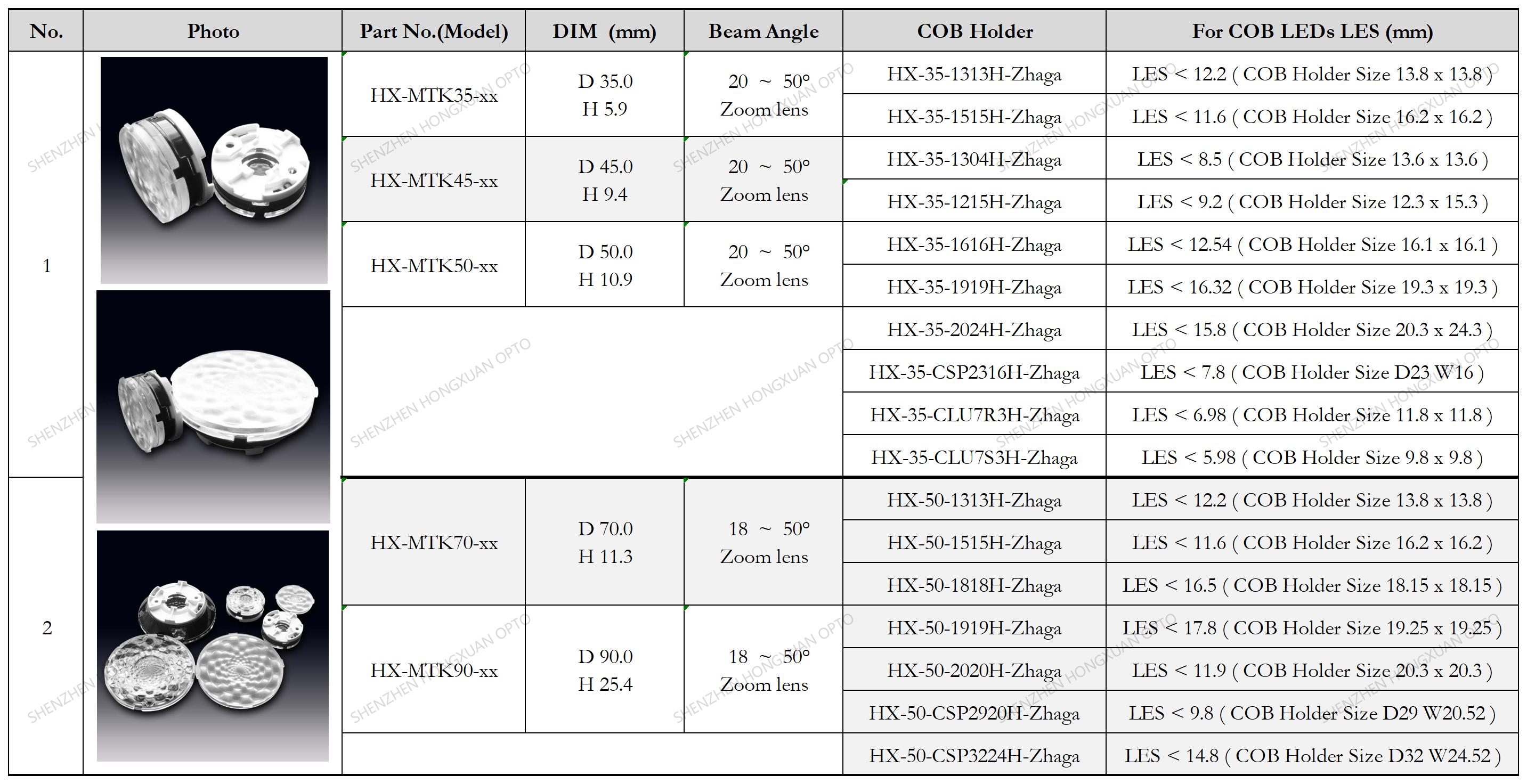

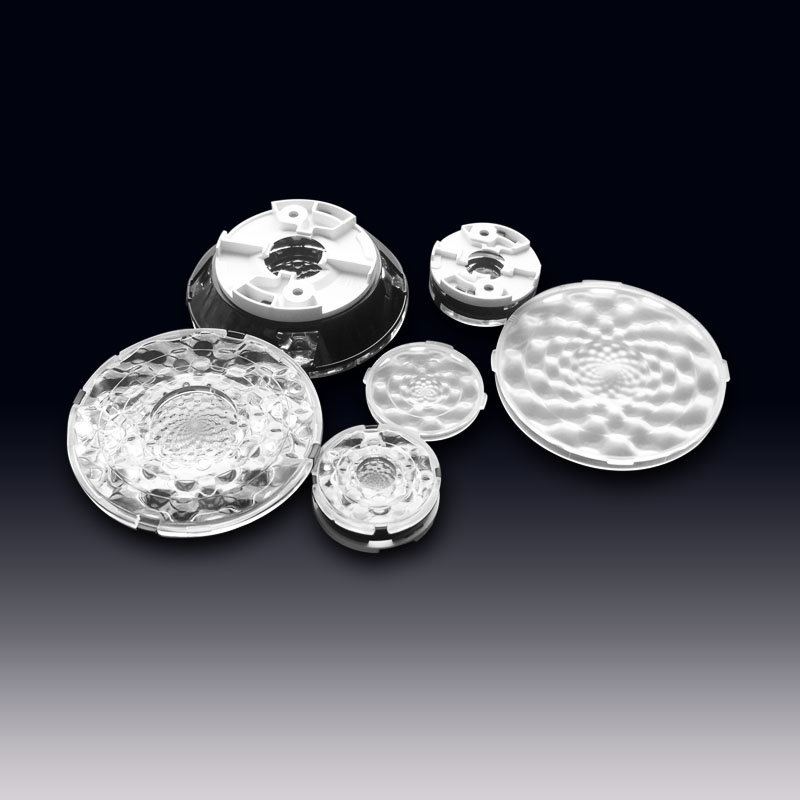

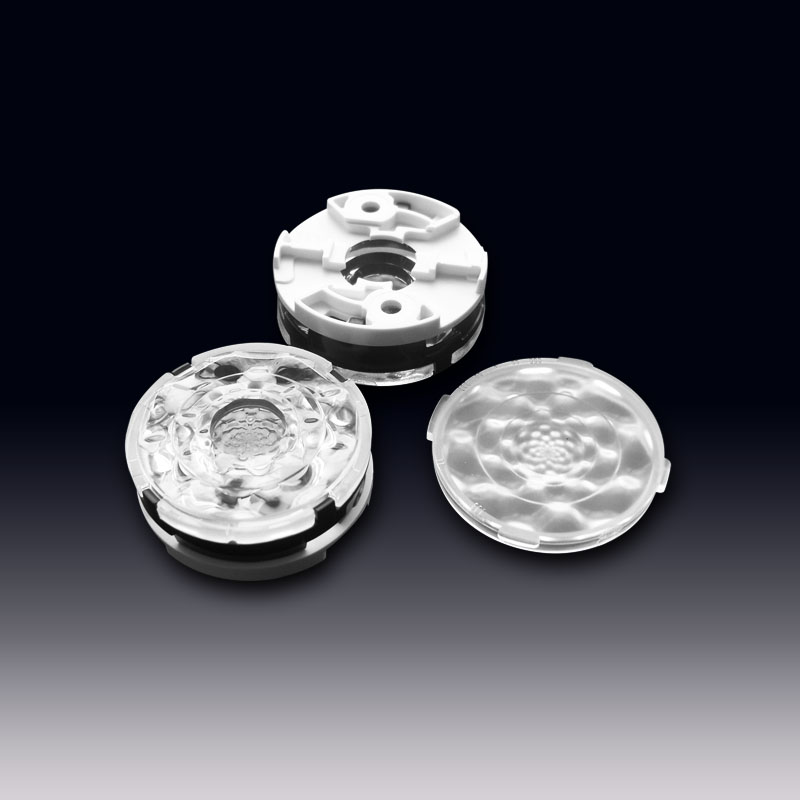

∅35 to ∅90mm 18° to 50° Ultrathin Zoom optics COB lens with Zhaga holder for Lumileds, CREE, OSRAM, Bridgelux, Citizen, Tridonic COB LEDs (HX-MTKxx Series)

The HX-MTKxx Series of 18° to 50° Ultrathin Zoom optics COB lens: All subfamilies have the same dimensions and come preassembled in lightweight, durable holders with fastening tape that makes their installation fast and easy. The HX-MTKxx Series family has a wide selection of beams from narrow to wide flood. Perfectly compatible with Zhaga holder for Lumileds, CREE, OSRAM, Bridgelux, Citizen, Tridonic 1313, 1515, 1919, CSP2316, CSP3224 COB LEDs, etc. Widely used in basketball court lighting, gymnasium lighting, badminton court lighting, volleyball court lighting, underwater lighting, outdoor landscape lighting (or lens), security equipment, traffic display lighting (or lens), electronic components, automotive lamp lenses, beam lamp lenses, and stage lighting.


Product Description

∅35 to ∅90mm 18° to 50° Ultrathin Zoom optics COB lens with Zhaga holder for Lumileds, CREE, OSRAM, Bridgelux, Citizen, Tridonic COB LEDs .

Guía de selección de productos :

COB lentes LED, lentes de vidrio, lente Fresnel, lente para farolas,Stage lighting lens
