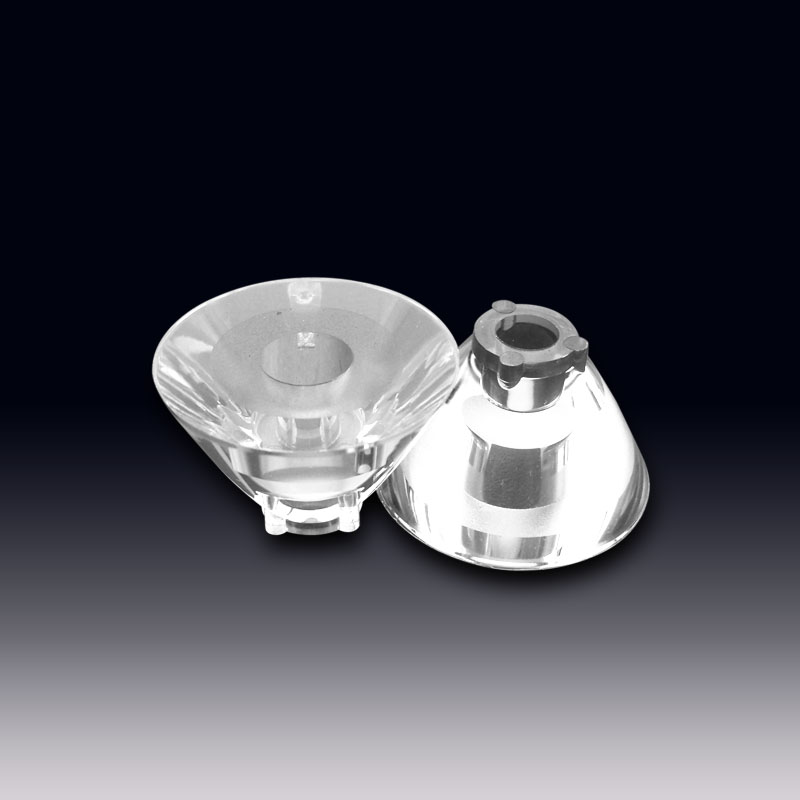

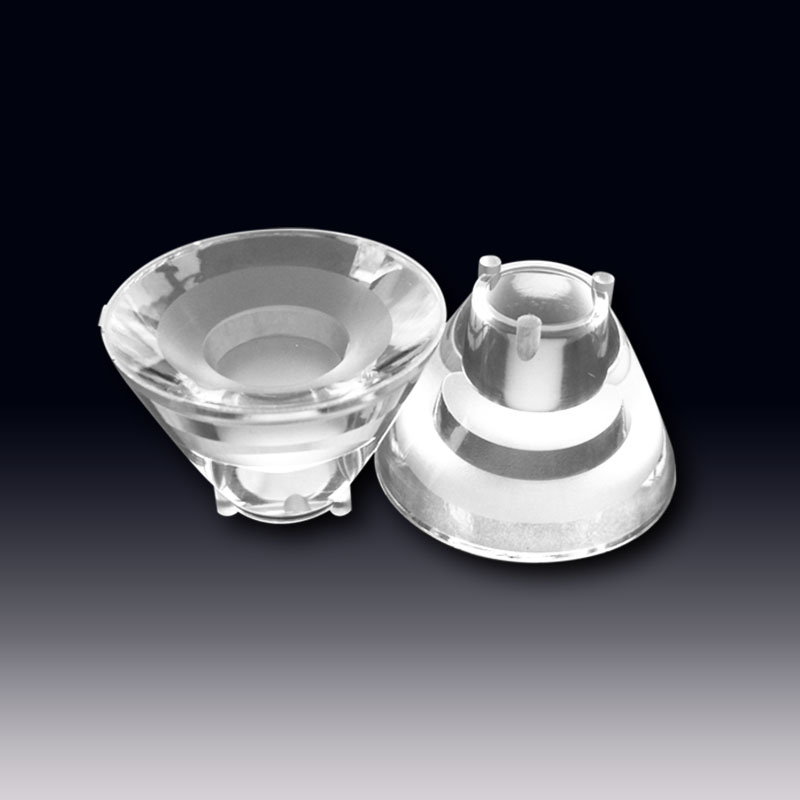

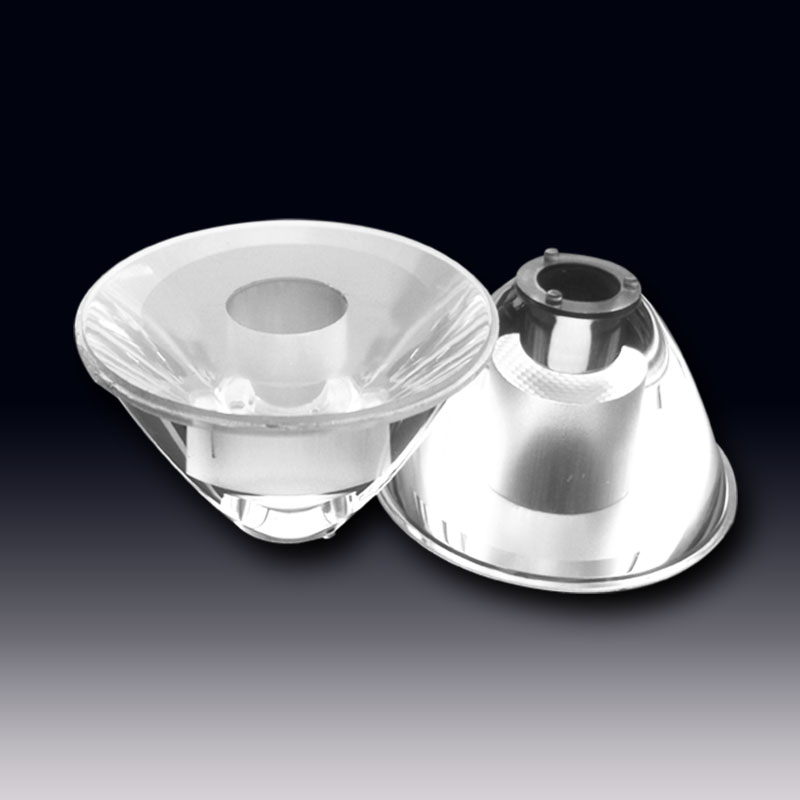

2°, 3°, 5° beam ultra narrow light LED lens searchlights for CREE XPL, XPE, XTE | Luxeon T | Seoul Z5P, CSP LEDs (HX-NBxx Series)

HX-NBxx Series LED Lens Series; available in narrow and ultra-narrow beams, offering unsurpassed light quality for a variety of lighting applications. A narrow beam combined with over 90% efficiency means more light for tough tasks in demanding environments. The HX-NBxx Series LED Lens Series is designed to have a tight uniform beam and a maximum candela peak. Perfectly compatible with CREE XPE, XHP35; OSRAM Square, P7; Seoul Z5P; Luxeon T; CSP LEDs. Widely used in basketball court lighting, gymnasium lighting, badminton court lighting, volleyball court lighting, underwater lighting, outdoor landscape lighting (or lens), security and traffic display lighting (or lens), light and shadow effect display, highway light and shadow warning lighting, surgical lamp lighting, and shadowless lamp lighting.


Product Description

2°, 3°, 5° beam ultra narrow light LED lens searchlights for CREE XPL, XPE, XTE | Luxeon T | Seoul Z5P, CSP LEDs.
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;

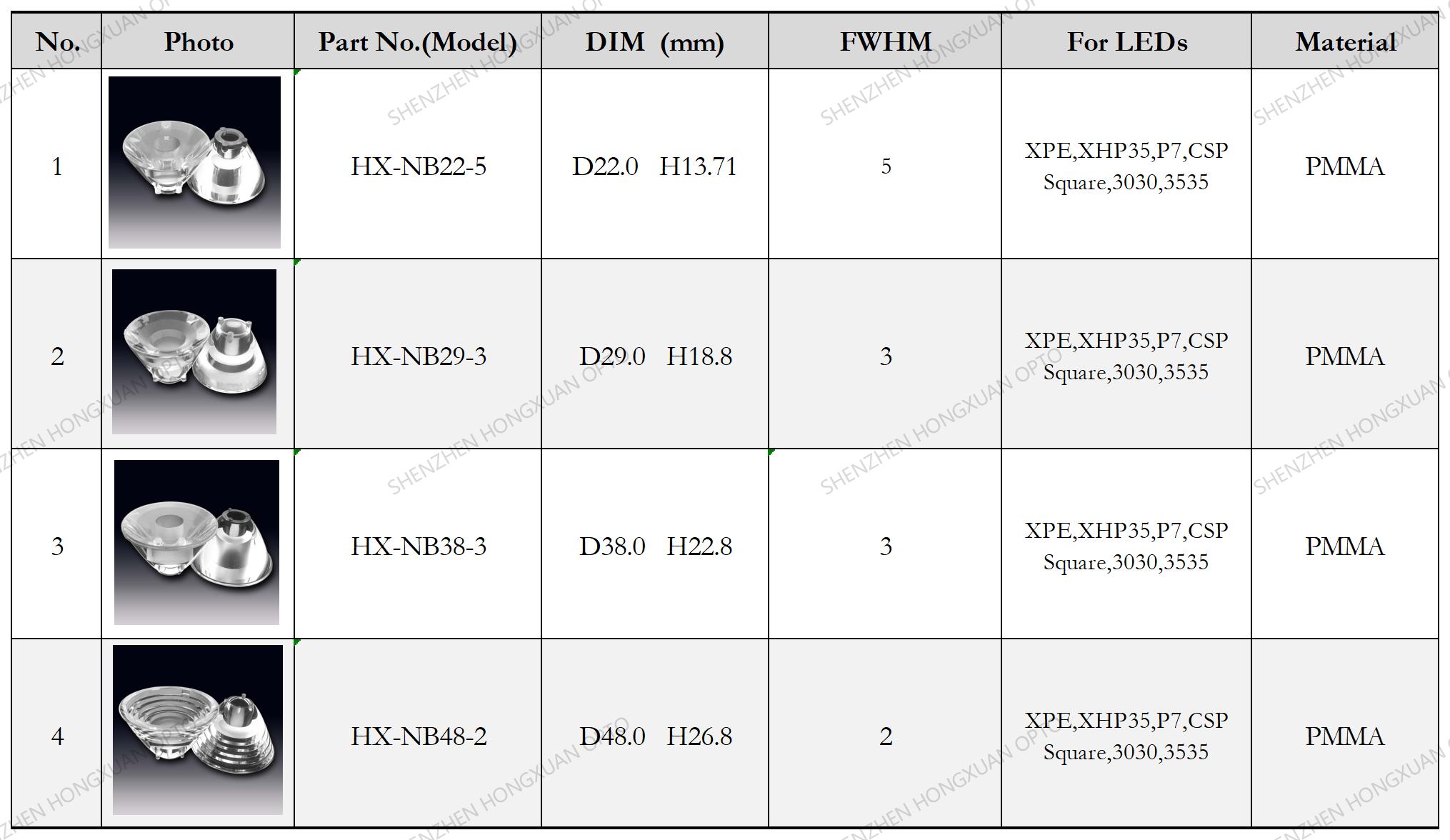

Product Selection Guide :

COB led lenses, Glass Lenses, Fresnel lens, Streetlight lens,Stage lighting lens
