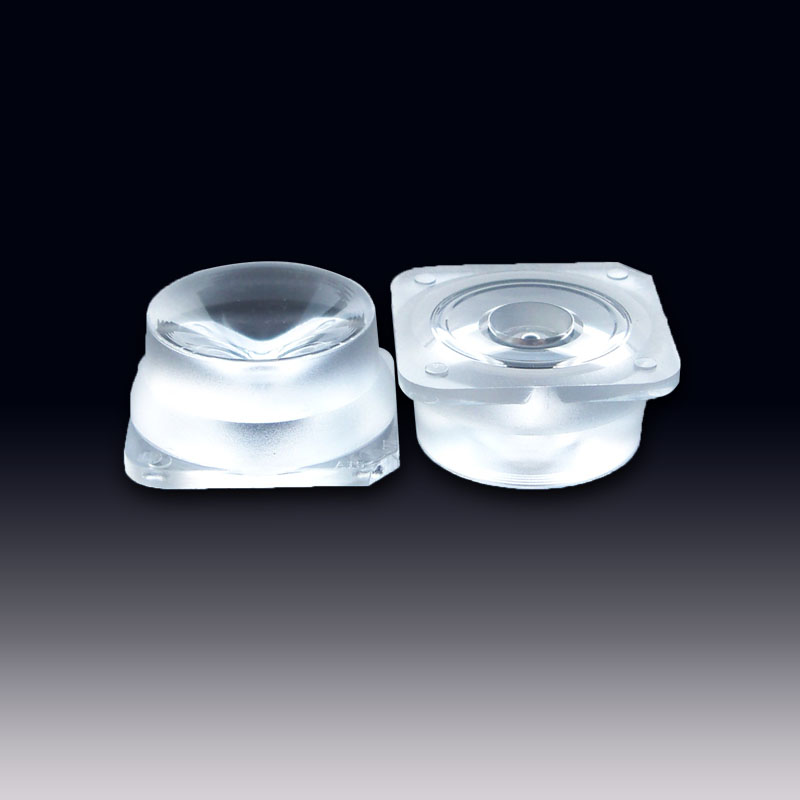

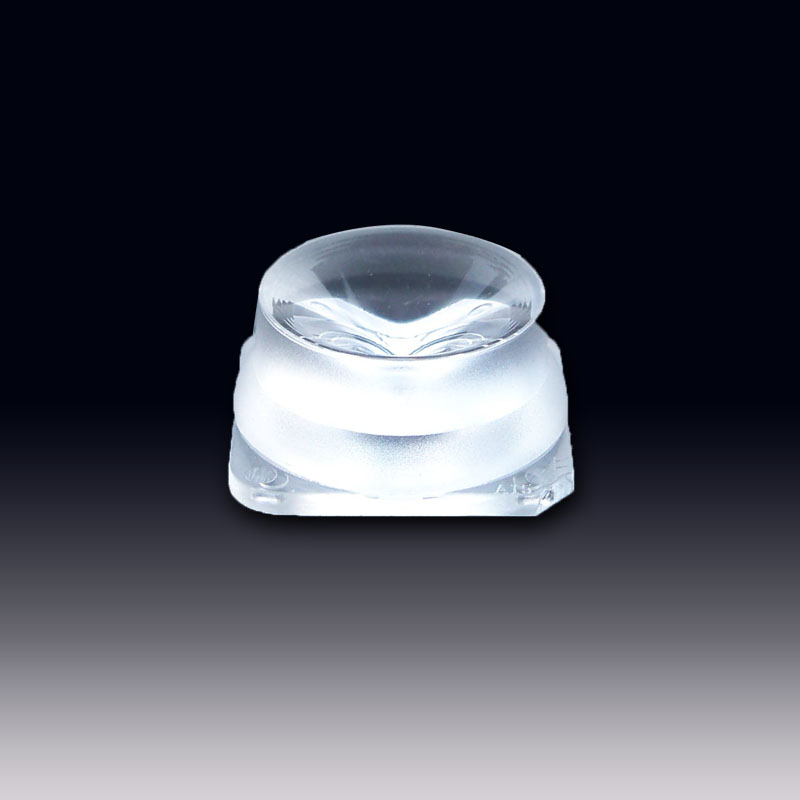

17mm square TV backlight lens for advertising light boxes, panel lights, compatible with 3030 3535 LEDs (HX-TV17 Series)

Square TV backlight lenses are available in two sizes, widely used in indoor panel lights, outdoor advertising light boxes, sign lighting, and large display advertisements in airports or commercial centers. The product has high optical uniformity, small size, high optical efficiency, high cost performance, and durability. It perfectly fits CREE, OSRAM, Lumileds, Samsung 3030 3535 size LEDs.


Product Description

17mm square TV backlight lens for advertising light boxes, panel lights, compatible with 3030 3535 LEDs.

Product Selection Guide :
# Part No.(Model) DIM(mm) FA(deg) For LEDs Material
1 HX-TV17-2A L17.0 W17.0 H7.96 170° 3030,3535 PMMA
2 HX-TV17-1A L17.0 W17.0 H7.86 170° 3030,3535 PMMA
3 HX-TV15-1A L14.87 W14.87 H7.07 170° 3030,3535 PMMA
