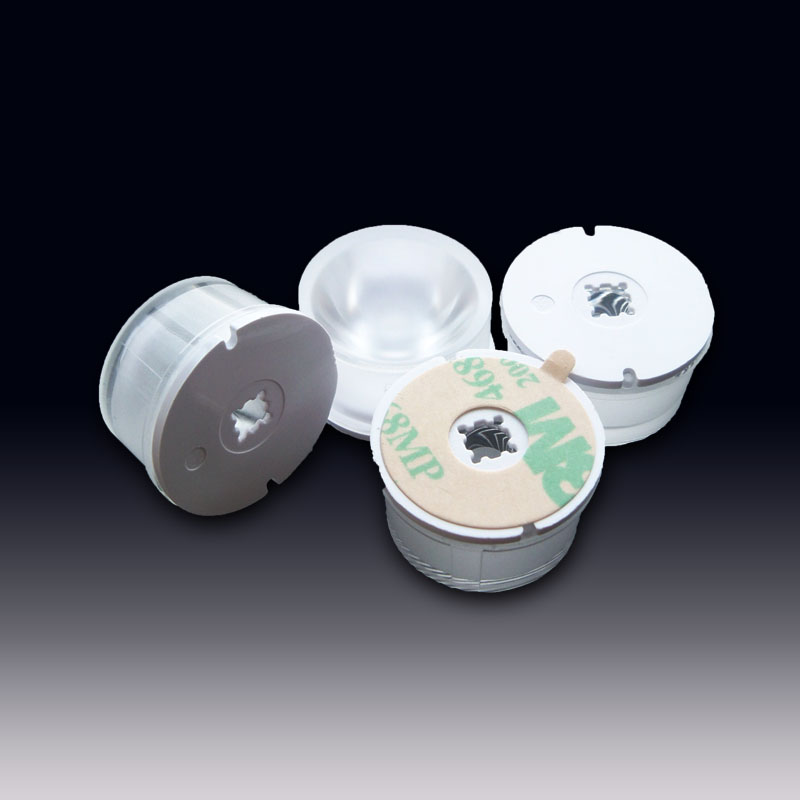

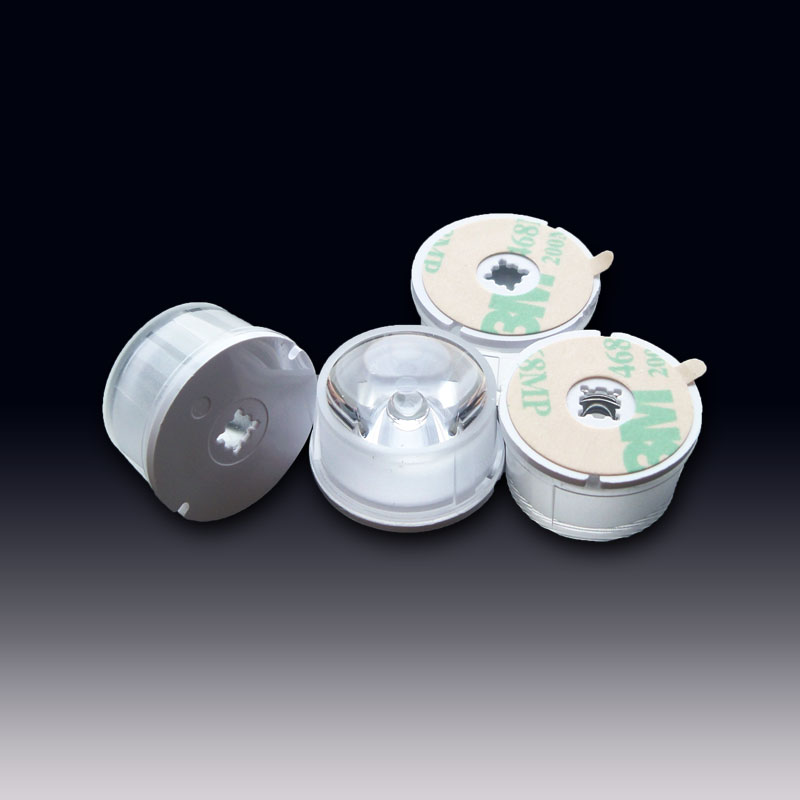

21mm IP65 waterproof optics lens with 3M tape and holder for Osram Oslon Square 3131, 3030 LEDs (HX-WPA Series)

The HX-WPA Series of optical LED lenses: All subfamilies have the same dimensions and come preassembled in lightweight, durable holders with fastening tape that makes their installation fast and easy. The HX-WPA Series family has a wide selection of beams from narrow to wide flood. Perfectly compatible with CREE, OSRAM, Lumileds, Samsung 3030, 3131 LEDs, etc. Widely used in basketball court lighting, gymnasium lighting, badminton court lighting, volleyball court lighting, underwater lighting, outdoor landscape lighting (or lens), security equipment, traffic display lighting (or lens), electronic components, automotive lamp lenses, beam lamp lenses, and stage lighting.


Product Description

21mm IP65 waterproof optics lens with 3M tape and holder for Osram Oslon Square 3131, 3030 LEDs


Product Selection Guide :
# Part No.(Model) DIM(mm) FWHM(deg) For LEDs Material
1 HX-WPA-6 D20.0 * H11.55 6° Oslon Square 3131,3030 PMMA + PC
2 HX-WPA-15 (polishing) D20.0 * H11.55 15° Oslon Square 3131,3030 PMMA + PC
3 HX-WPA-15M（matte) D20.0 * H11.55 15° Oslon Square 3131,3030 PMMA + PC
4 HX-WPA-30L D20.0 * H11.55 30° Oslon Square 3131,3030 PMMA + PC
5 HX-WPA-45L D20.0 * H11.55 45° Oslon Square 3131,3030 PMMA + PC
6 HX-WPA-60L D20.0 * H11.55 60° Oslon Square 3131,3030 PMMA + PC
7 HX-WPA-1045 D20.0 * H11.55 10(±5) x 45(±5) Oslon Square 3131,3030 PMMA + PC
8 HX-WPA-1060 D20.0 * H11.55 10(±5) x 60(±5) Oslon Square 3131,3030 PMMA + PC
