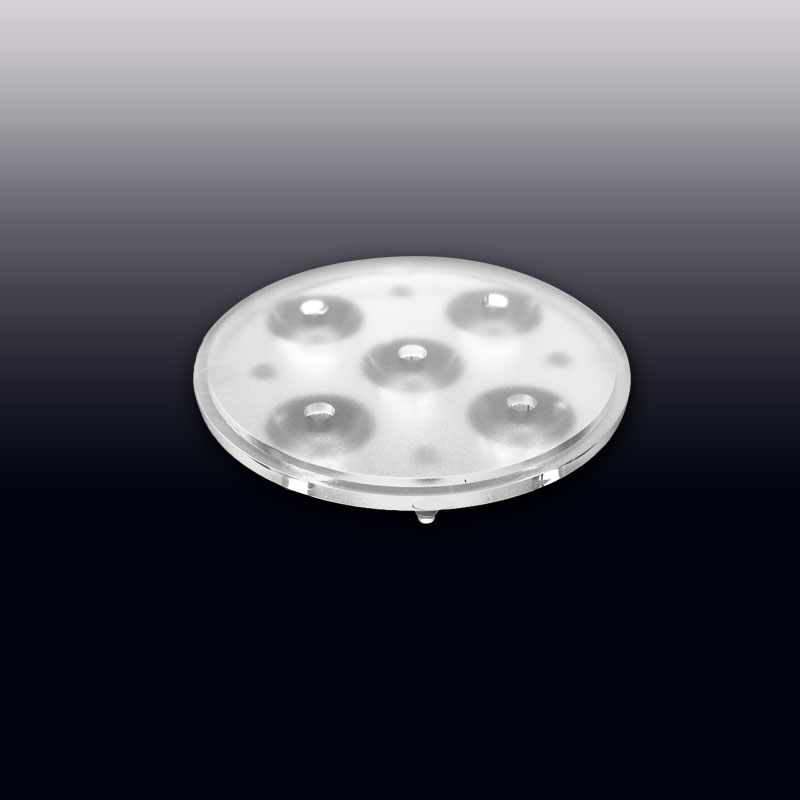

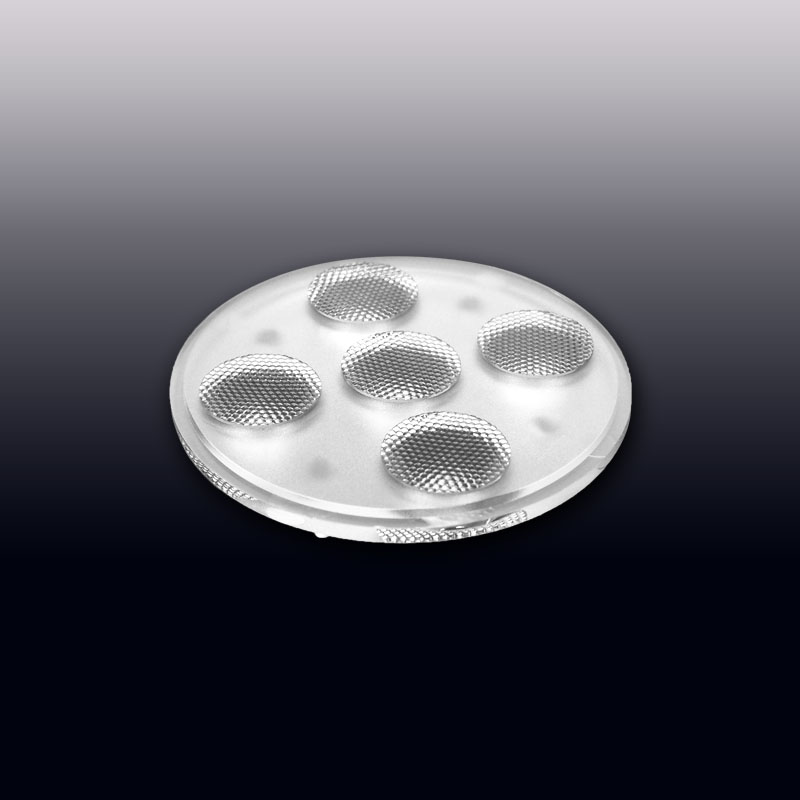

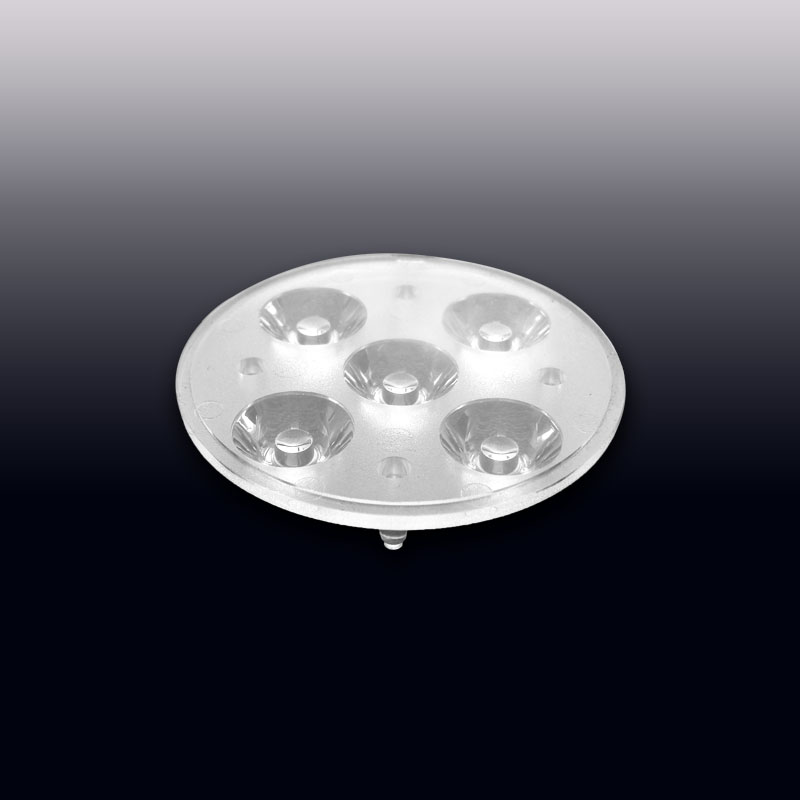

35.8mm 5H1 arrays 50 x 50 mm led lens for 3030 3535 5050 size LED packages for flood lights,tunnel lights,stadium lights,parking lot lighting,high bay lighting.( HX-F50 Series )

HX-F50 Series optics (50x50mm 2X2 arrays) ensure optimal lighting conditions for both players and spectators that meet the standards and requirements of different sports,for flood lights,tunnel lights,stadium lights,parking lot lighting.Beams are designed for symmetrical and asymmetrical low glare sports floodlights. Optimized for HP 3535 and compatible with up to 5050 size flat LED packages.


Product Description

HX-F50 Series optics (50x50mm 2X2 arrays) ensure optimal lighting conditions for both players and spectators that meet the standards and requirements of different sports,for flood lights,tunnel lights,stadium lights,parking lot lighting high bay lighting.Beams are designed for symmetrical and asymmetrical low glare sports floodlights. Optimized for HP 3535 and compatible with up to 5050 size flat LED packages.
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E,XHP35;
CREE XML,MHB;
OSRAM SSL80,SSL150,Square,P8,S8;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535,5050;
LG 3535, Samsung 3535;
Nichia 119A;
3030,3535,5050,7070 ;



No. Part No.(Model) DIM(mm) Angle(deg) For LEDs Material
1 HX-10-15L D10.65 * H6.8 15° CREE XPE,OSRAM OSLON,3030,3535 LEDs PC +PMMA
2 HX-10-30L D10.65 * H6.8 30° CREE XPE,OSRAM OSLON,3030,3535 LEDs PC +PMMA
3 HX-10-45L D10.65 * H6.8 45° CREE XPE,OSRAM OSLON,3030,3535 LEDs PC +PMMA
4 HX-10-60L D10.65 * H6.8 60° CREE XPE,OSRAM OSLON,3030,3535 LEDs PC +PMMA
5 HX-10-90L D10.65 * H6.8 90° CREE XPE,OSRAM OSLON,3030,3535 LEDs PC +PMMA

CREE XP XHP35 XML MHB OSRAM P8 S8 flood lights tunnel lights stadium lights parking lot lighting high bay lighting LED LENS
CREE XP XHP35 XML MHB OSRAM P8 S8 flood lights tunnel lights stadium lights parking lot lighting high bay lighting LED LENS
CREE XP XHP35 XML MHB OSRAM P8 S8 flood lights tunnel lights stadium lights parking lot lighting high bay lighting LED LENS
CREE XP XHP35 XML MHB OSRAM P8 S8 flood lights tunnel lights stadium lights parking lot lighting high bay lighting LED LENS

Product Download

Product Application

63. Neutral Density Filters: ND2-ND400 Filter Set This neutral density filter set (52mm diameter) includes ND2, ND4, ND8, ND16, ND32, ND64, ND100, ND200, ND400 filters, reducing light intensity without altering color. Made from optical glass (multi-coated), they prevent lens flare and enable long-exposure photography. Technical specs: 0.3-2.6 density (1-400X reduction), scratch-resistant coating, and metal filter ring. 64. LED Lens 5050: 160° Wide-Angle Lens Designed for 5050 SMD LEDs, this 160° wide-angle PMMA lens (10mm x 5mm) creates uniform diffused light, ideal for LED strips or panels. The frosted surface reduces glare, with 88% light transmittance. Technical specs: ±0.1mm tolerance, heat resistance up to 75°C, and reflow soldering compatibility. Suitable for ceiling lights, office panels, or home decor.

65. Linear Lighting Lens: 2835 Linear Lens (1m) This 1m linear lens for 2835 LED strips features a prismatic design (120° beam angle) to enhance light uniformity, reducing hotspots by 90%. Made from UV-stabilized PMMA (92% transmittance), it fits 10mm wide strips. Technical specs: 2mm thickness, snap-in installation, and compatibility with IP65 strip lights. Used in under-cabinet lighting, channel letters, or architectural profiles. 66. LED Magnifying Glass: 5X Magnifier with LED Strip This 5X LED magnifying glass features a 100mm optical glass lens and a 12-LED strip (6000K) for bright, shadow-free illumination. The adjustable gooseneck (360° rotation) and stand allow hands-free use in workshops or reading. Technical details: 200mm working distance, 500lm brightness, and 110-240V AC power. Suitable for electronics repair, jewelry making, or hobby crafts.

67. Telescope Mirror 16-inch: 16-inch Parabolic Primary Mirror This 16-inch (406mm) parabolic primary mirror (f/4.5 focal ratio) is made from borosilicate glass, coated with aluminum (96% reflectivity) and protected by SiO2. Ideal for large Dobsonian telescopes, it delivers sharp views of deep-sky objects. Technical specs: 19mm thickness, ±1/8 wave surface accuracy, and 12kg weight. Requires professional collimation for optimal performance. 68. Air Optix Contact Lenses: Aqua Comfort Plus Air Optix Aqua Comfort Plus contact lenses use HydraGlyde Moisture Matrix, providing 98% oxygen permeability for 30-day continuous wear. The spherical design (-10.00 to +6.00D) features a smooth edge for comfort, with 33% water content. Technical specs: UV blocking, FDA-approved, and blister packaging (6 pairs/box). Reduces dryness for extended wearers.
