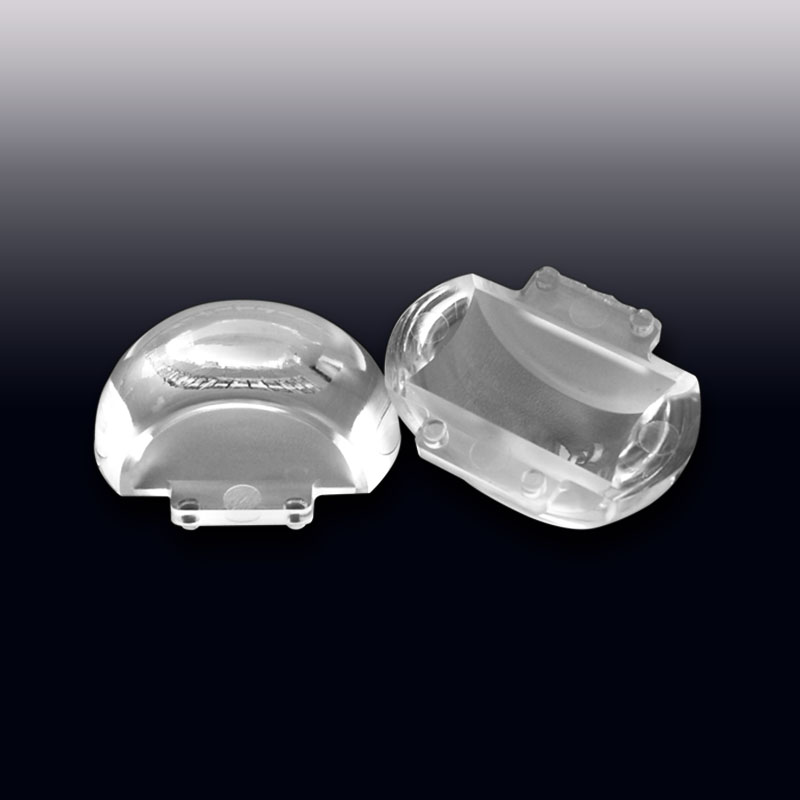

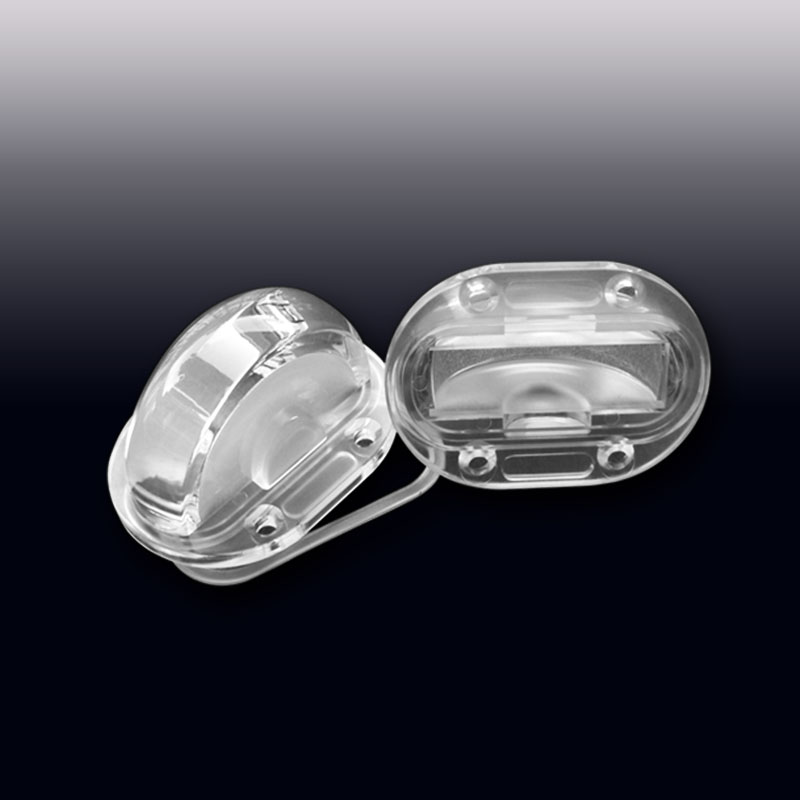

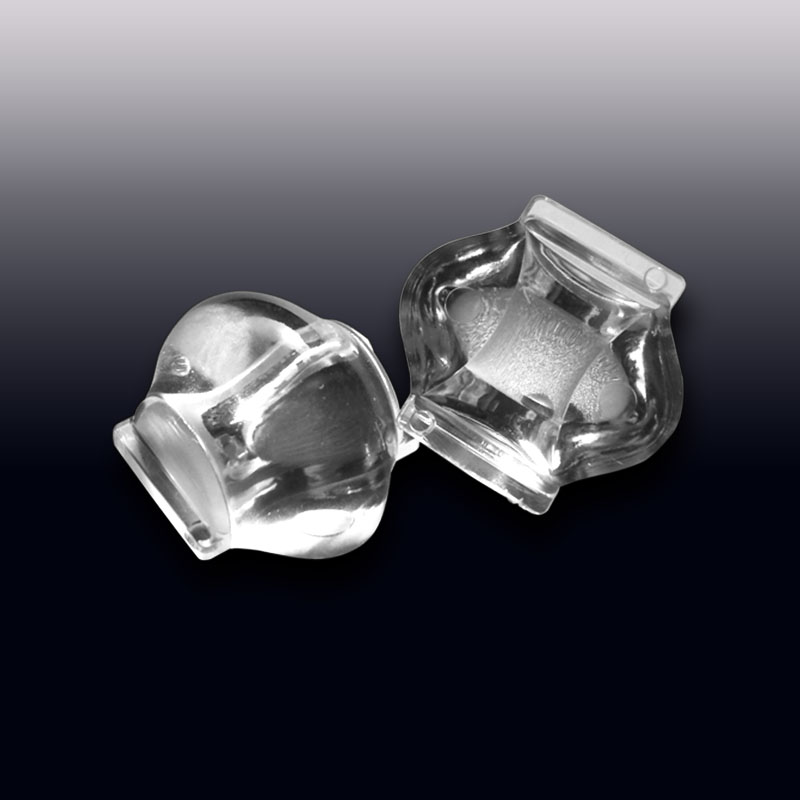

10x100degree square Led lens for OSRAM P7 3535 CREE XP |Federal 5050|Seoul MJT4040 LEDs(HX-CTD-FH)

HX-F50 Series optics (50x50mm 2X2 arrays) ensure optimal lighting conditions for both players and spectators that meet the standards and requirements of different sports,for flood lights,tunnel lights,stadium lights,parking lot lighting.Beams are designed for symmetrical and asymmetrical low glare sports floodlights. Optimized for HP 3535 and compatible with up to 5050 size flat LED packages.


Product Description

HX-F50 Series optics (50x50mm 2X2 arrays) ensure optimal lighting conditions for both players and spectators that meet the standards and requirements of different sports,for flood lights,tunnel lights,stadium lights,parking lot lighting high bay lighting.Beams are designed for symmetrical and asymmetrical low glare sports floodlights. Optimized for HP 3535 and compatible with up to 5050 size flat LED packages.
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E,XHP35;
CREE XML,MHB;
OSRAM SSL80,SSL150,Square,P8,S8;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535,5050;
LG 3535, Samsung 3535;
Nichia 119A;
3030,3535,5050,7070 ;



No. Part No.(Model) DIM(mm) Angle(deg) For LEDs Material
1 HX-10-15L D10.65 * H6.8 15° CREE XPE,OSRAM OSLON,3030,3535 LEDs PC +PMMA
2 HX-10-30L D10.65 * H6.8 30° CREE XPE,OSRAM OSLON,3030,3535 LEDs PC +PMMA
3 HX-10-45L D10.65 * H6.8 45° CREE XPE,OSRAM OSLON,3030,3535 LEDs PC +PMMA
4 HX-10-60L D10.65 * H6.8 60° CREE XPE,OSRAM OSLON,3030,3535 LEDs PC +PMMA
5 HX-10-90L D10.65 * H6.8 90° CREE XPE,OSRAM OSLON,3030,3535 LEDs PC +PMMA

CREE XP XHP35 XML MHB OSRAM P8 S8 flood lights tunnel lights stadium lights parking lot lighting high bay lighting LED LENS
CREE XP XHP35 XML MHB OSRAM P8 S8 flood lights tunnel lights stadium lights parking lot lighting high bay lighting LED LENS
CREE XP XHP35 XML MHB OSRAM P8 S8 flood lights tunnel lights stadium lights parking lot lighting high bay lighting LED LENS
CREE XP XHP35 XML MHB OSRAM P8 S8 flood lights tunnel lights stadium lights parking lot lighting high bay lighting LED LENS

Product Download

Product Application

91. Plastic Lens: 35mm Polycarbonate Lens This 35mm polycarbonate lens (focal length 50mm) offers impact resistance (10x stronger than glass) with 88% light transmittance, ideal for automotive or industrial applications. The plano-convex design focuses light, while the UV-stabilized material resists yellowing. Technical specs: 2mm thickness, heat resistance up to 120°C, and compatibility with injection molding. 92. Sapphire Glass: 50mm Sapphire Lens This 50mm sapphire glass lens (focal length 100mm) features 99% light transmittance and Mohs 9 hardness (scratch-resistant), ideal for high-temperature or harsh environments. The convex design (5mm thickness) focuses light for lasers, sensors, or medical devices. Technical specs: thermal conductivity 28W/m·K, chemical resistance, and compatibility with IR wavelengths.

93. Small Reflector for LED: 15mm Aluminum Reflector This 15mm aluminum reflector (elliptical design) enhances light output for 3mm/5mm LEDs, achieving 85% reflection efficiency. The snap-fit design mounts directly to PCBs, with heat resistance up to 150°C. Technical specs: 0.2mm thickness, 60° beam angle, and compatibility with through-hole or SMD LEDs. Used in indicators, flashlights, or small fixtures. 94. Projection Dome: 100mm Projection Dome Lens The 100mm projection dome lens (hemispherical) creates 180° panoramic projections, ideal for planetariums or immersive displays. Made from optical-grade PMMA (90% transmittance), it reduces distortion to <2%. Technical specs: 50mm height, anti-reflective coating, and compatibility with short-throw projectors. Enables 360° visual experiences in museums, theaters, or VR setups.

95. Lens Glass: 36mm Borosilicate Glass Lens This 36mm borosilicate glass lens (focal length 75mm) features high thermal shock resistance, suitable for high-temperature applications (up to 300°C). The convex design (4mm thickness) focuses light for ovens, furnaces, or industrial sensors. Technical specs: 99% light transmittance, chemical resistance, and ±0.1mm dimensional accuracy. 96. Potassium Bromide: KBr Optical Window A potassium bromide (KBr) optical window (50mm x 50mm x 5mm) transmits infrared light (2-25μm), ideal for FTIR spectroscopy or thermal imaging. The hygroscopic material requires dry storage, with 90% IR transmittance. Technical specs: 1/10 wave surface flatness, anti-static coating, and compatibility with vacuum systems.
