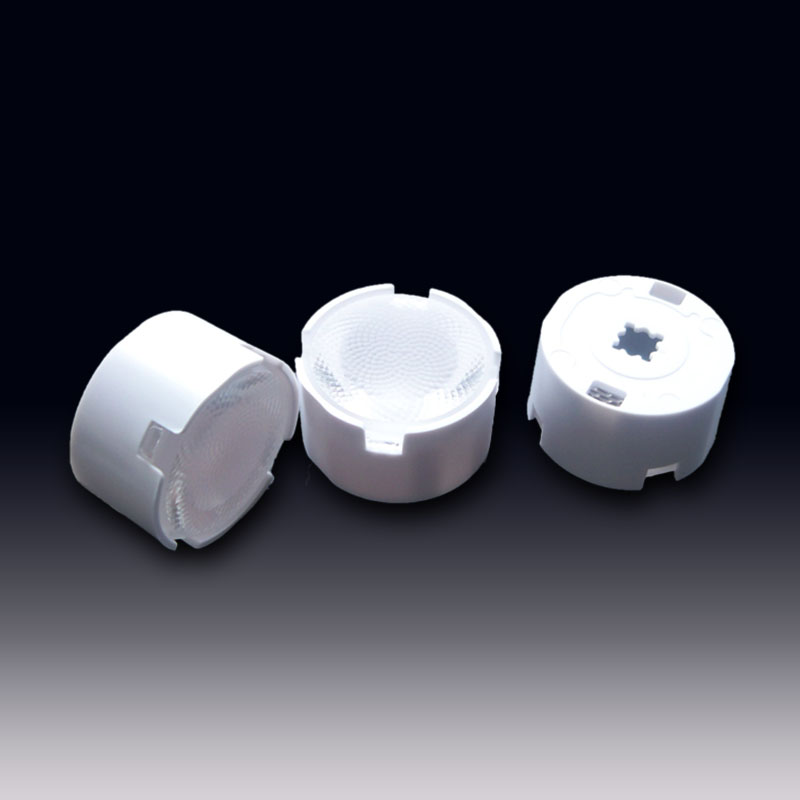

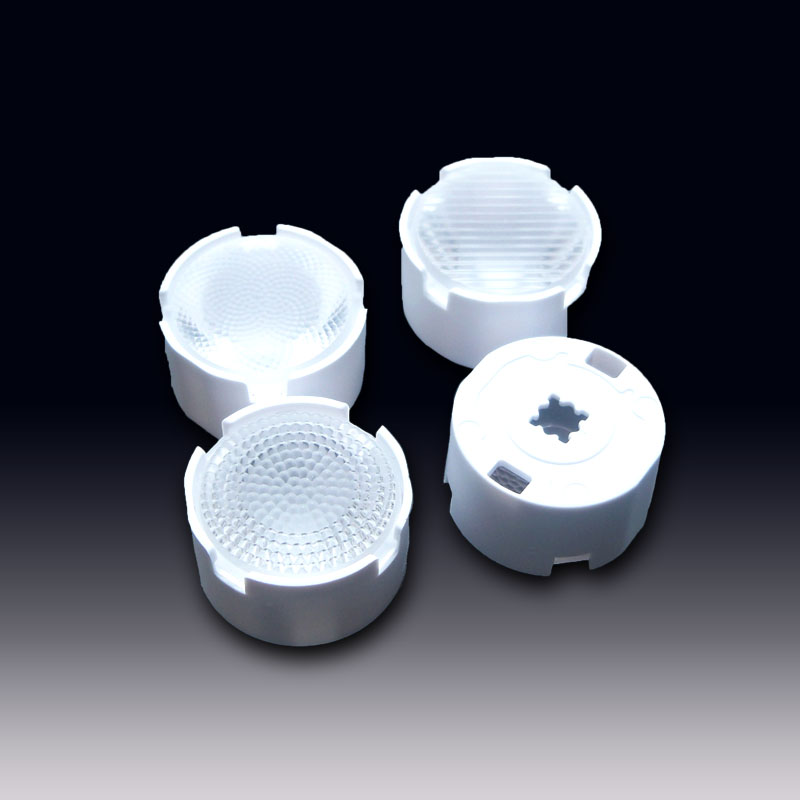

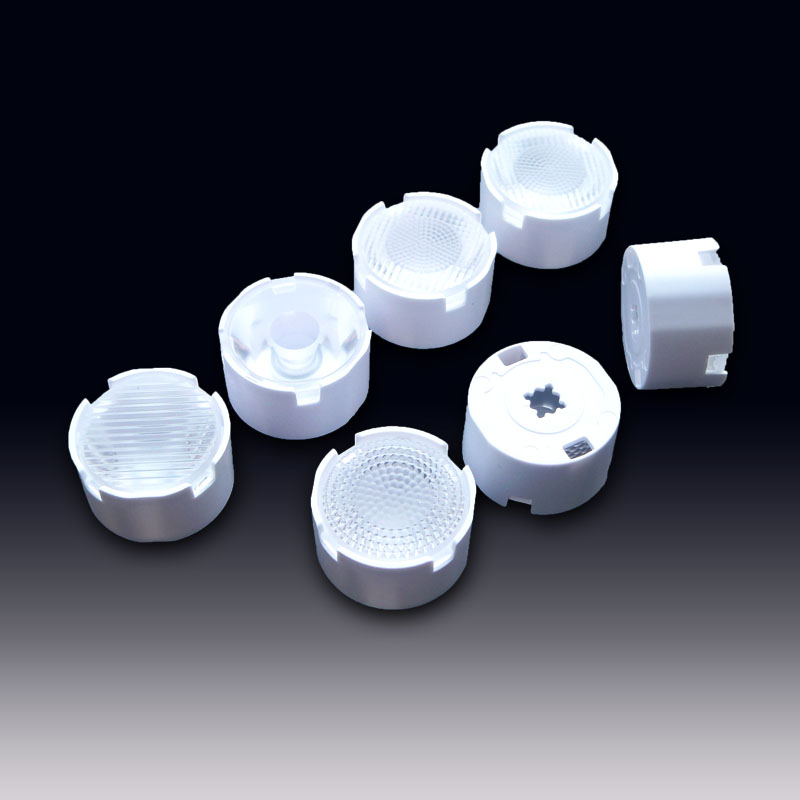

∅21.7mm PMMA PC Mold Injection OSRAM 3131 | 3535 | P7 | CREE XPE | XTE | CSP Optics LED LENS with Tape (HX-PHK Series)

The HX-PHK Series optics LED lens: all subfamilies have the same dimensions and come preassembled in lightweight, durable holders with fastening tape that makes their installation fast and easy. The HX-PHK Series family has a wide selection of beams from narrow to wide flood. Perfectly compatible with CREE XP, XT, XHP35; OSRAM OSLON Square, P7, P8; Seoul Z5P, Z5M; Luxeon T; Federal 3535; LG 3535; Samsung 3535; Nichia 119A, 3030 LEDs. Widely used in basketball court lighting, gymnasium lighting, badminton court lighting, volleyball court lighting, underwater lighting, outdoor landscape lighting (or lens). Security and traffic display lighting (or lens).


Product Description

∅21.7mm PMMA PC Mold Injection OSRAM 3131 | 3535 | P7 | CREE XPE | XTE | CSP Optics LED LENS with Tape .
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;

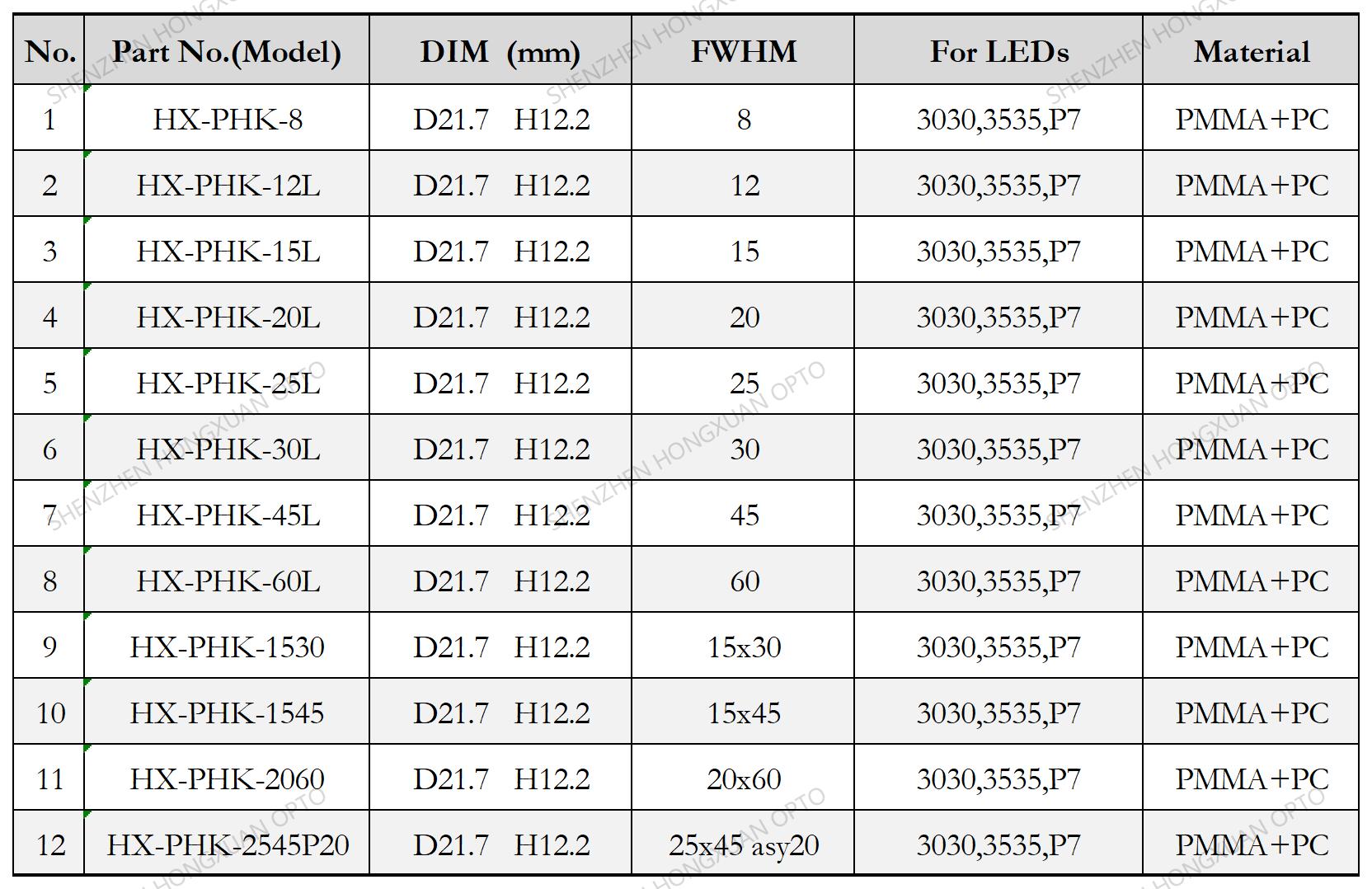

Product Selection Guide :

COB led lenses, Glass Lenses, Fresnel lens, Streetlight lens
