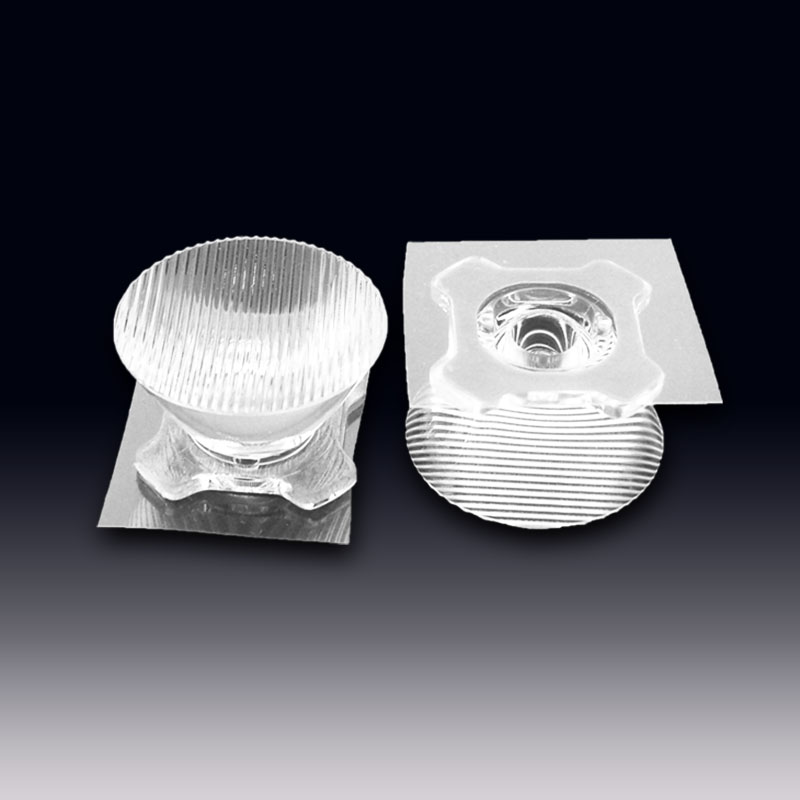

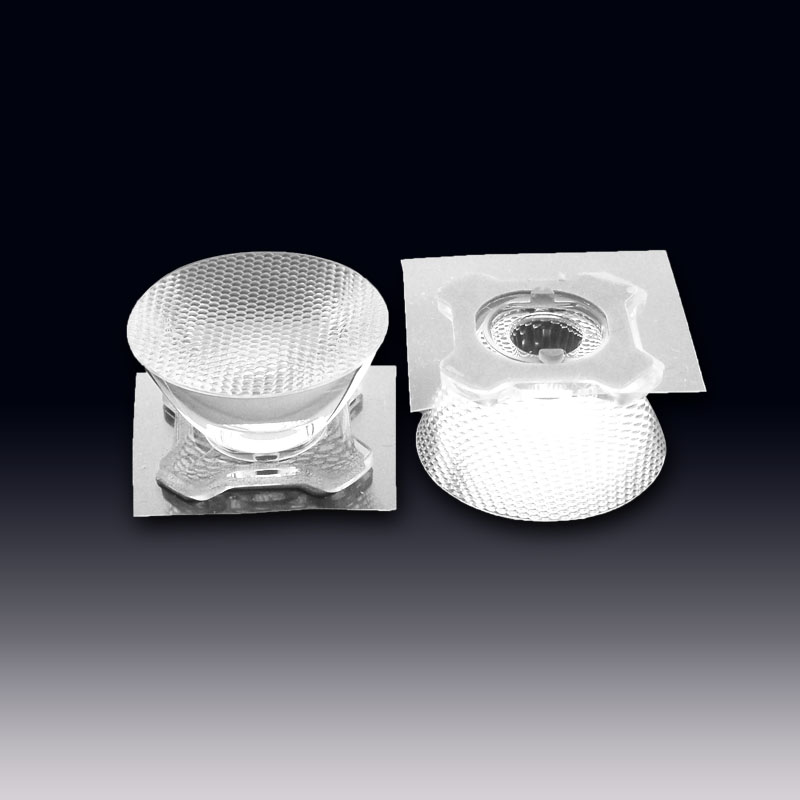

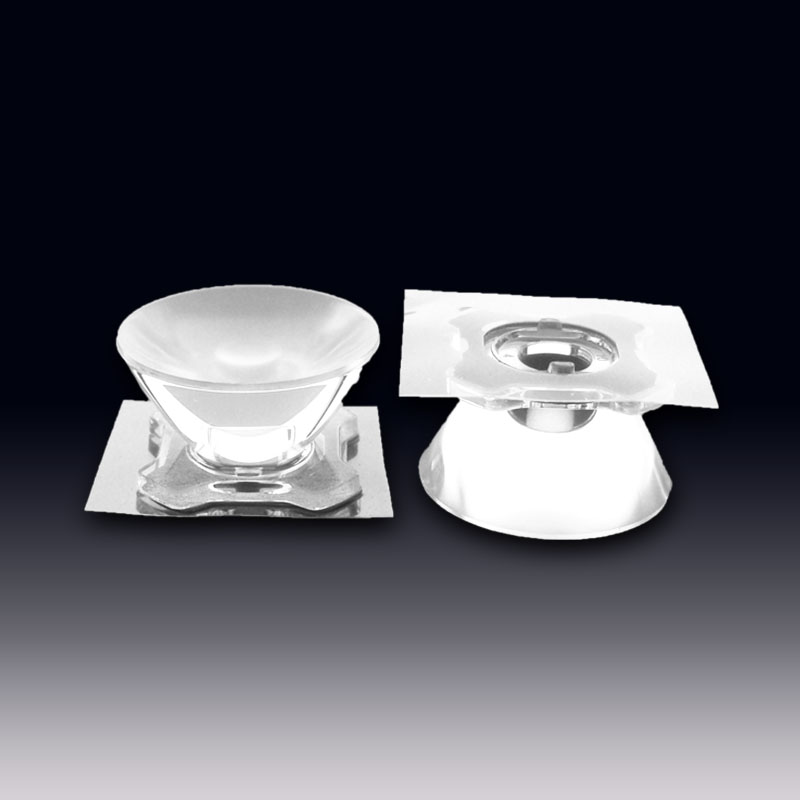

∅21.6 PMMA optics LED lenses with 3M tape for CREE XPE, XTE, XBD | Luxeon T | Federal 3535 | Seoul Z5P, Z5M | Osram LEDs (HX-SPM Series)

The HX-SPM Series optics LED lenses, TIR-lens with multiple beam patterns designed to be easily protected against the environment by conformal coatings. Available with or without two-sided adhesive tape.Perfectly compatible with CREE XP, XT, XHP35; OSRAM OSLON Square, P7, P8; Seoul Z5P, Z5M; Luxeon T; Federal 3535; LG 3535; Samsung 3535; Nichia 119A LEDs.Widely used in basketball court lighting, gymnasium lighting, badminton court lighting, volleyball court lighting, underwater lighting, outdoor landscape lighting (or lens), security equipment, traffic display lighting (or lens), electronic components, automotive lamp lenses, beam lamp lenses, and stage lighting.


Product Description

∅21.6 PMMA optics LED lenses with 3M tape for CREE XPE, XTE, XBD | Luxeon T | Federal 3535 | Seoul Z5P, Z5M | Osram LEDs.
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;

Product Selection Guide :

# Part No.(Model) DIM(mm) FWHM(deg) For LEDs Material
1 HX-SPM-10 D21.2 * H12.0 10° 2525,3030,3535 LEDs PMMA
2 HX-SPM-25 D21.2 * H12.0 25° 2525,3030,3535 LEDs PMMA
3 HX-SPM-1040 D21.2 * H12.0 10(±5) x 40(±5) 2525,3030,3535 LEDs PMMA


Product Download
