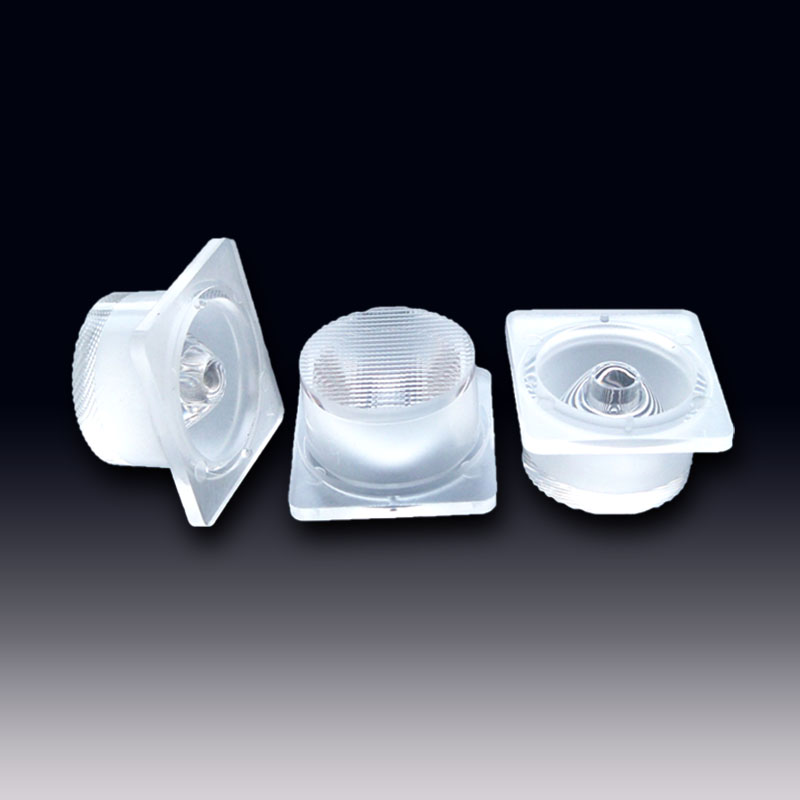

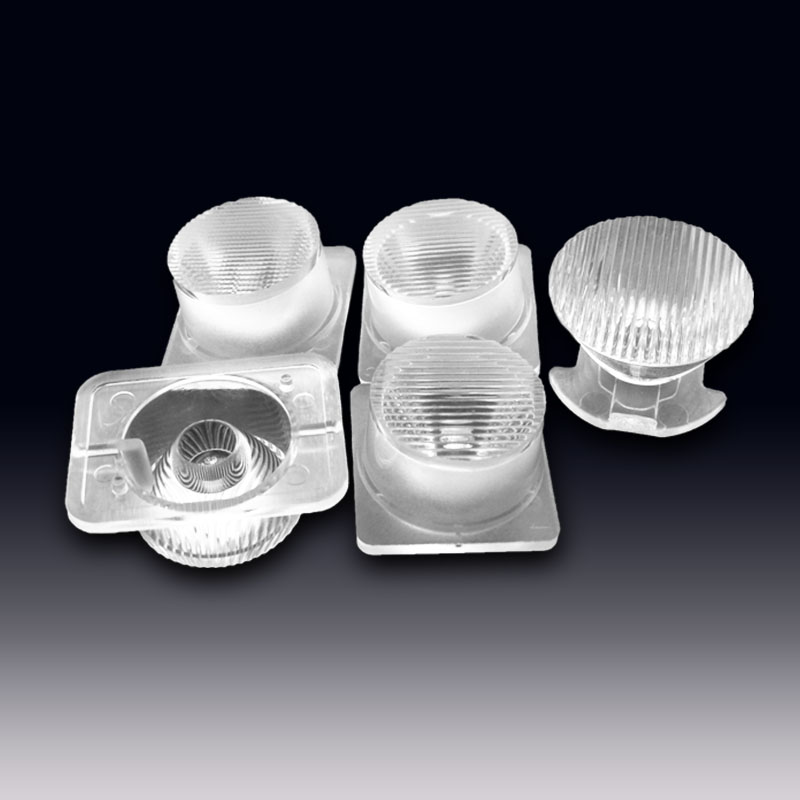

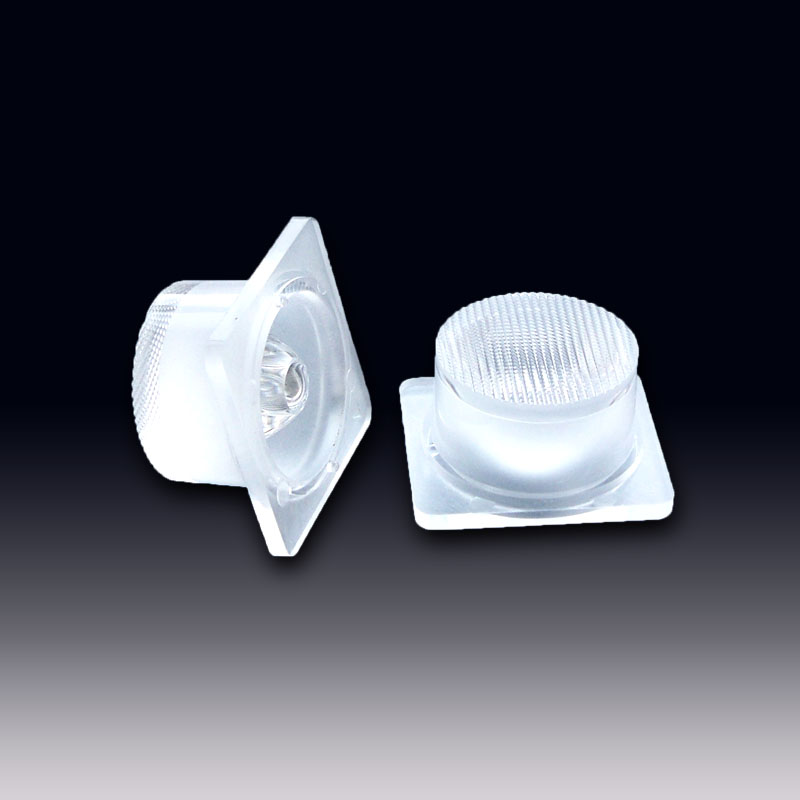

26x24 mm square PMMA PC waterproof optics LED lens for CREE XP, OSRAM Square, SAMSUNG 3030 3535 LEDs (HX-SDF Series).

26x24 mm square PMMA PC waterproof optics LED lens with two pins. The HX-SDF Series of lenses: all subfamilies have the same dimensions and come preassembled in lightweight, durable holders with fastening tape that makes their installation fast and easy. The HX-SDF Series family has a wide selection of beams from narrow to wide flood. Perfectly compatible with CREE XP, XT, XHP35; OSRAM OSLON Square, P7, P8; Seoul Z5P, Z5M; Luxeon T; Federal 3535; LG 3535; Samsung 3535; Nichia 119A, 3030 LEDs. Widely used in basketball court lighting, gymnasium lighting, badminton court lighting, volleyball court lighting, underwater lighting, outdoor landscape lighting (or lens). Security and traffic display lighting (or lens).


Product Description

26x24 mm square PMMA PC waterproof optics LED lens for CREE XP OSRAM Square SAMSUNG 3030 3535 LEDs.
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;


# Part No.(Model) DIM(mm) FA(deg) For LEDs Material
1 HX-SDF-C L26.2 * W24 * H14.35 6(±5) x 45(±5) XPE,3030,3535,P7 PMMA / PC
2 HX-SDF-CA L26.2 * W24 * H14.35 10(±5) x 40(±5) XPE,3030,3535,P7 PMMA / PC
3 HX-SDF-CB L26.2 * W24 * H14.35 10(±5) x 60(±5) XPE,3030,3535,P7 PMMA / PC
4 HX-SDF-CC L26.2 * W24 * H14.35 12(±5) x 35(±5) XPE,3030,3535,P7 PMMA / PC
5 HX-SDF-CD (four holes) L26.2 * W24 * H14.35 20(±5) x 40(±5) XPE,3030,3535,P7 PMMA / PC
6 HX-SDF-CE L26.2 * W24 * H14.35 20(±5) x 40(±5) XPE,3030,3535,P7 PMMA / PC
