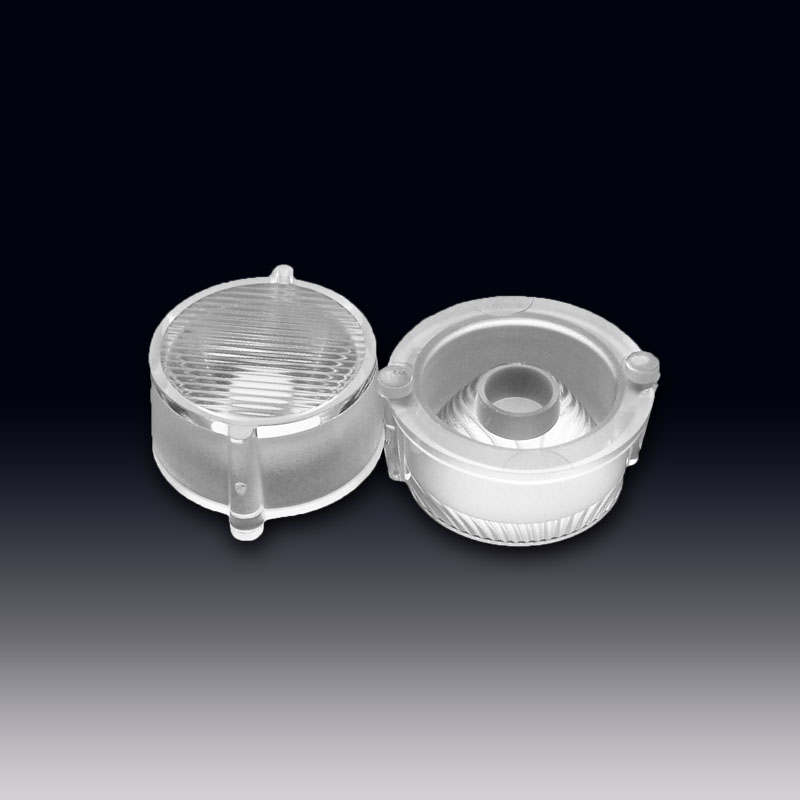

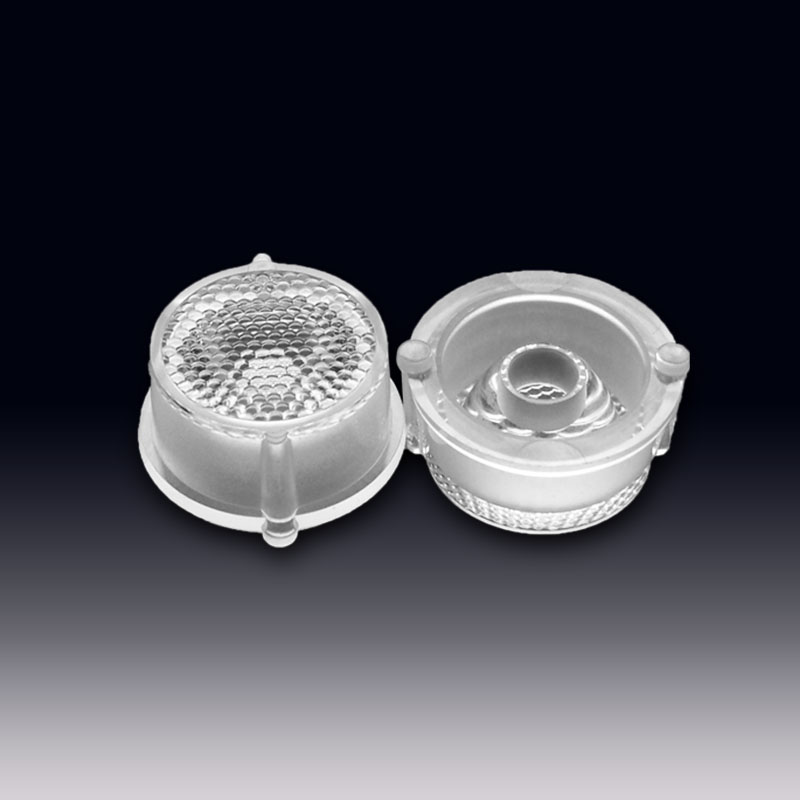

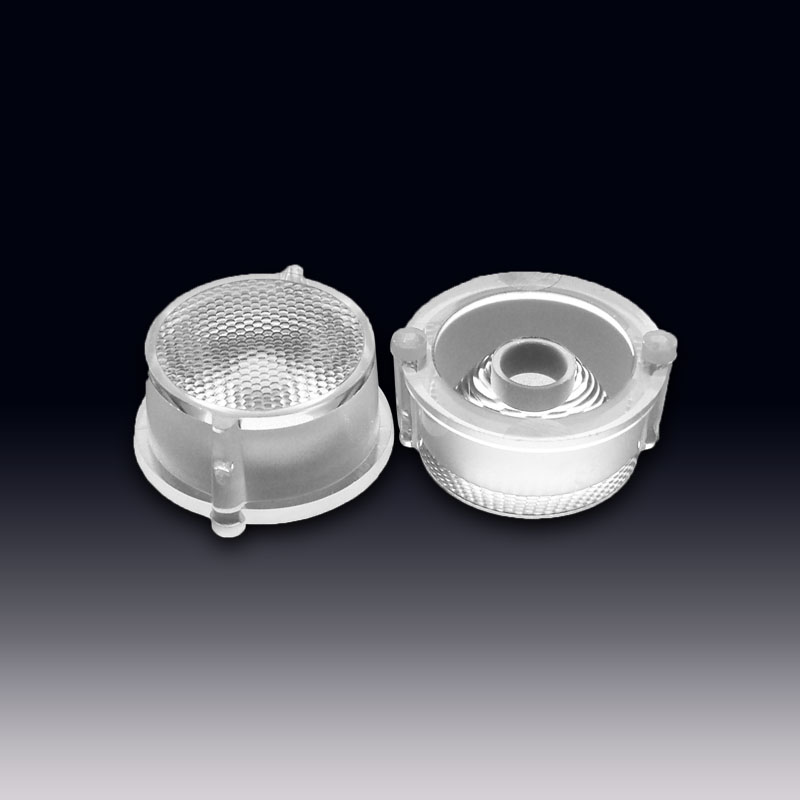

15.8mm diameter PMMA waterproof optical plastic lens, 20 to 60 degrees, for CREE, OSRAM, Lumileds, Samsung 3030, 3535 LEDs (HX-WP16 Series).

The HX-WP16 Series of optical LED lenses: All subfamilies have the same dimensions and come preassembled in lightweight, durable holders with fastening tape that makes their installation fast and easy. The HX-WP16 Series family has a wide selection of beams from narrow to wide flood. Perfectly compatible with CREE, OSRAM, Lumileds, Samsung 3030, 3535 RGBW LEDs, etc. Widely used in basketball court lighting, gymnasium lighting, badminton court lighting, volleyball court lighting, underwater lighting, outdoor landscape lighting (or lens), security equipment, traffic display lighting (or lens), electronic components, automotive lamp lenses, beam lamp lenses, and stage lighting.


Product Description

Diameter 15.8mm IP65 waterproof optics PMMA LED lens for CREE OSRAM Samsung Prolight Lumileds,2525,3030,3535 RGBW LEDs


Product Selection Guide :
# Part No.(Model) DIM(mm) FWHM(deg) For LEDs Material
1 HX-WP16-20L D15.6 * H8.0 20° 3030/XBD/OSLON/ XPE/2835 PMMA
2 HX-WP16-30L D15.6 * H8.0 30° 3030/XBD/OSLON/ XPE/2835 PMMA
3 HX-WP16-45L D15.6 * H8.0 45° 3030/XBD/OSLON/ XPE/2835 PMMA
4 HX-WP16-60L D15.6 * H8.0 60° 3030/XBD/OSLON/ XPE/2835 PMMA
5 HX-WP16-2545 D15.6 * H8.0 25(±5) x 45(±5) 3030/XBD/OSLON/ XPE/2835 PMMA


Product Download

Product Application

9. Binoculars High Quality: 15x56 HD Binoculars These 15x56 HD binoculars feature ED glass lenses and BaK-4 prisms, delivering 97% light transmission for crystal-clear images. The nitrogen-filled body is waterproof (IPX8) and fog-proof, suitable for marine use or mountain observation. Technical specs: 10mm eye relief, 280ft/1000yds field of view, and 2.1kg weight with tripod mount. Equipped with a rangefinder reticle for hunting or surveillance. 10. Reflector Solar: 20W Solar Concentrator Reflector This 20W solar concentrator uses a 300mm parabolic reflector (aluminum-coated) to focus sunlight onto a 5W solar cell, generating 12V DC for off-grid applications. The dual-axis tracking system follows the sun, optimizing energy capture. Technical specs: 85% energy conversion efficiency, IP65 rating, and 5-year warranty. Ideal for remote cabins, water pumps, or rural lighting.

The Hongxuan(Shenzhen Hongxuan Optoelectronic Technology Co.,Ltd) lens offers low-profile lenses specifically designed for the Luxeon LEDs, OSRAM LEDs ,Bridgelux LEDs or Seoul LEDs,Cree LEDs. A software-optimized aspheric profile enables the generation of several different beam output patterns:narrow,medium,elliptical and wides beams. The high collection efficiency reaches 85% of the total flux emitted by the LEDs. Lens holders are available in white or black,and provide the proper alignment the between the LEDs and the lenses,set correct distance between the lens and LED. The lens holder can be glued to the PCB to provide a secure assembly.

The LED lenses are for CREE,Lumileds,Osram,Seoul,Nichia,Bridgelux,Citizen,Prolight LEDs.and can provide street light lens,flood light lens,lighting lens,MR16 lens,Par22 lens,Par30 lens,Par38 lens,stage lighting lens,flashlight lens,hybrid light lens. These TIR optics are used to get narrow beams with smaller LED's or allow you to use the larger source LED’s and even multi chip LED's. As with the other TIR ranges, we have a number of beams to allow you to use the same size optics for a number of beam angles.
