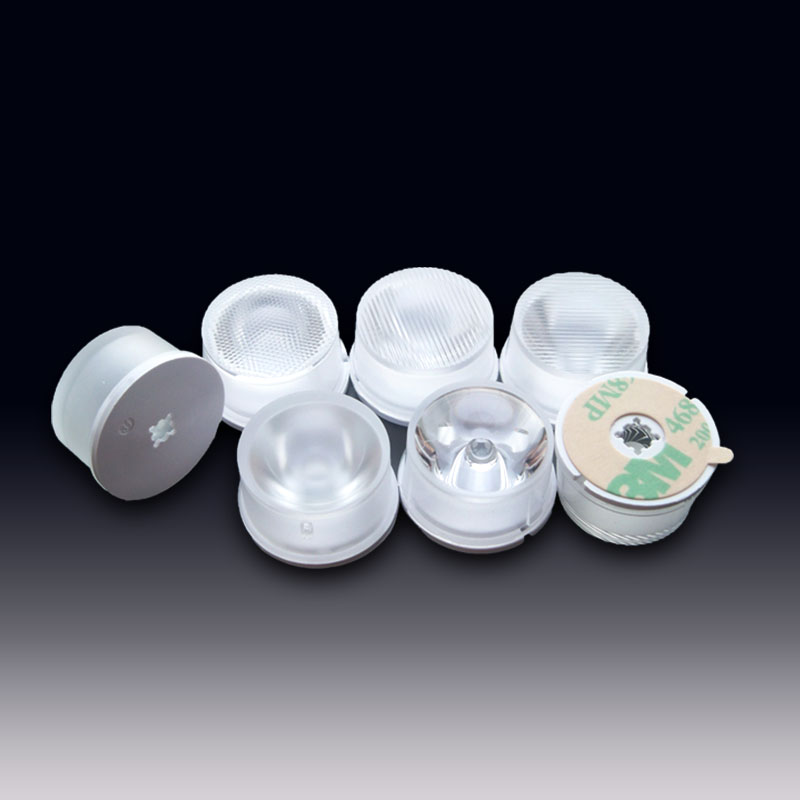

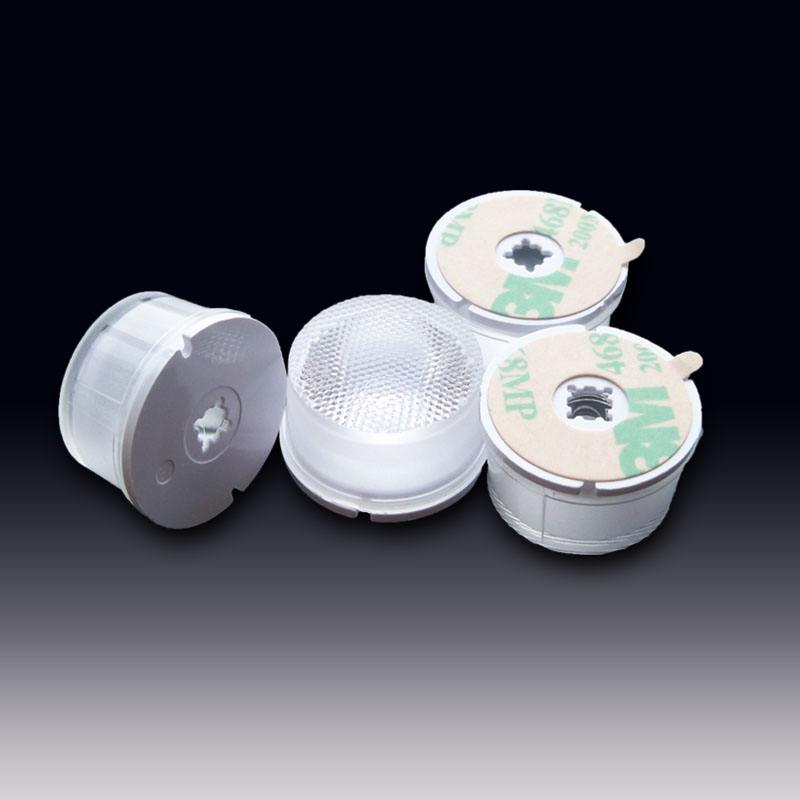

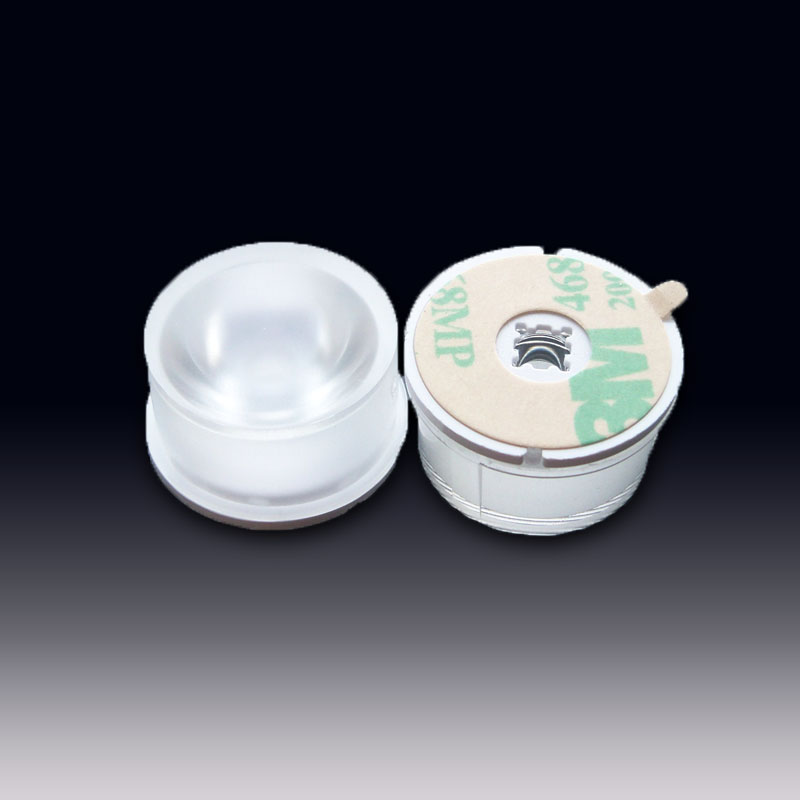

21mm IP65 waterproof optics lens with 3M tape and holder for CREE XPE, XTE | Luxeon T | Federal 3535 | Seoul Z5P, Z5M 3535 LEDs. (HX-WP Series)

The HX-WP Series of optical LED lenses: All subfamilies have the same dimensions and come preassembled in lightweight, durable holders with fastening tape that makes their installation fast and easy. The HX-WP Series family has a wide selection of beams from narrow to wide flood. Perfectly compatible with CREE, OSRAM, Lumileds, Samsung 3030, 3535 LEDs, etc. Widely used in basketball court lighting, gymnasium lighting, badminton court lighting, volleyball court lighting, underwater lighting, outdoor landscape lighting (or lens), security equipment, traffic display lighting (or lens), electronic components, automotive lamp lenses, beam lamp lenses, and stage lighting.


Product Description

21mm IP65 waterproof optics lens with 3M tape and holder for CREE XPE, XTE | Luxeon T | Federal 3535 | Seoul Z5P, Z5M 3535 LEDs .


Product Selection Guide :
# Part No.(Model) DIM(mm) FWHM(deg) For LEDs Material
1 HX-WP-6 D20.0 * H11.55 6° CREE XPE,Samsung 3535 LED PMMA + PC
2 HX-WP-15 (polishing) D20.0 * H11.55 15° CREE XPE,Samsung 3535 LED PMMA + PC
3 HX-WP-15M（matte) D20.0 * H11.55 15° CREE XPE,Samsung 3535 LED PMMA + PC
4 HX-WP-30L D20.0 * H11.55 30° CREE XPE,Samsung 3535 LED PMMA + PC
5 HX-WP-45L D20.0 * H11.55 45° CREE XPE,Samsung 3535 LED PMMA + PC
6 HX-WP-60L D20.0 * H11.55 60° CREE XPE,Samsung 3535 LED PMMA + PC
7 HX-WP-1045 D20.0 * H11.55 10(±5) x 45(±5) CREE XPE,Samsung 3535 LED PMMA + PC
8 HX-WP-1060 D20.0 * H11.55 10(±5) x 60(±5) CREE XPE,Samsung 3535 LED PMMA + PC


Product Download
