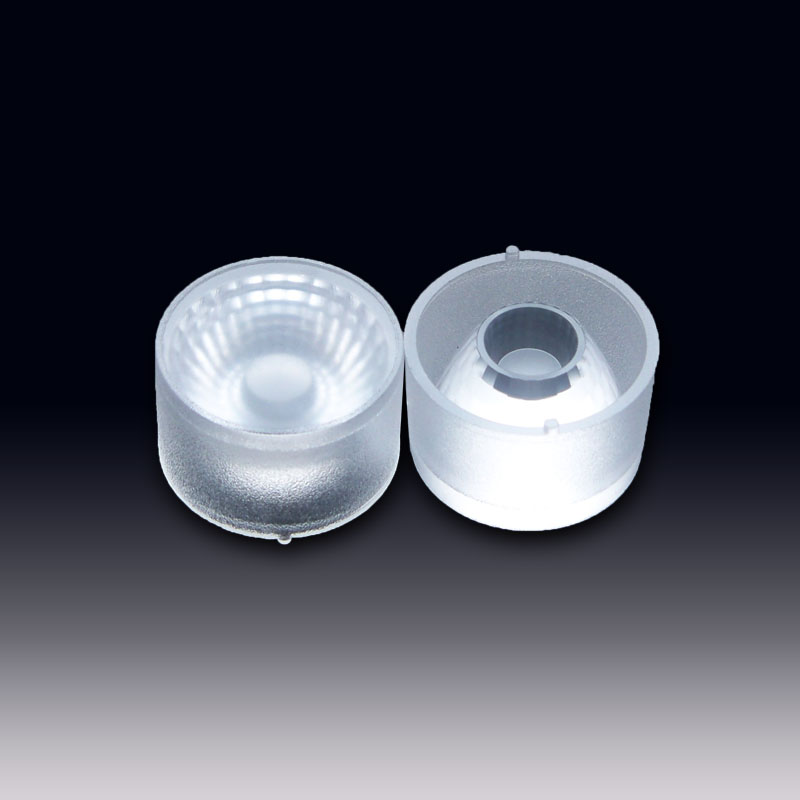

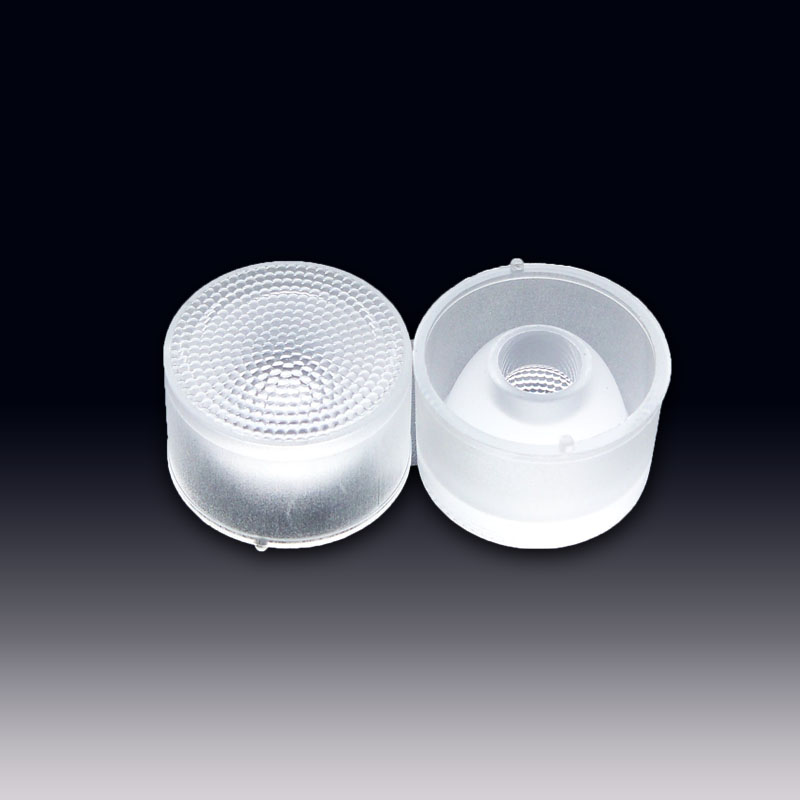

21.8mm diameter PMMA PC waterproof optical plastic lens, 3 to 120 degrees, for CREE, OSRAM, Lumileds, Samsung 3030, 3535, 5050 LEDs (HX-WPH Series).

The HX-WPH Series of optical LED lenses: All subfamilies have the same dimensions and come preassembled in lightweight, durable holders with fastening tape that makes their installation fast and easy. The HX-WPH Series family has a wide selection of beams from narrow to wide flood. Perfectly compatible with CREE, OSRAM, Lumileds, Samsung 3030, 3535, 5050 RGBW LEDs, etc. Widely used in basketball court lighting, gymnasium lighting, badminton court lighting, volleyball court lighting, underwater lighting, outdoor landscape lighting (or lens), security equipment, traffic display lighting (or lens), electronic components, automotive lamp lenses, beam lamp lenses, and stage lighting.


Product Description

Diameter 21.8mm easily sealable waterproof TIR-lenses for up to 3535 ,3030,2525 size LED packages.
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;


Product Selection Guide :

waterproof led lenses, Glass Lenses, Fresnel lens, Streetlight lens

Product Download

Product Application

7. Spotlight LED: 20W COB Spotlight with Lens The 20W COB spotlight delivers 1600lm at 3000K warm white, featuring a 15° PMMA lens for precise beam control. The die-cast aluminum housing ensures efficient heat dissipation, supporting 50,000-hour lifespan. Technical specs: 85-265V AC input, 95+ CRI, and DMX512 dimming. Perfect for art galleries, retail showcases, or restaurant accent lighting. 8. LED Lens: 3535 SMD 60° Optical Lens Designed for 3535 SMD LEDs, this 60° PMMA lens features micro-prism structure for uniform light distribution, reducing hotspots by 80%. The rectangular design (8mm x 4mm) fits standard PCB layouts, with 92% light transmittance. Technical specs: ±0.05mm tolerance, UV-stabilized material, and reflow soldering compatibility. Ideal for LED tubes, panels, or linear lighting systems.

The Hongxuan(Shenzhen Hongxuan Optoelectronic Technology Co.,Ltd) lens offers low-profile lenses specifically designed for the Luxeon LEDs, OSRAM LEDs ,Bridgelux LEDs or Seoul LEDs,Cree LEDs. A software-optimized aspheric profile enables the generation of several different beam output patterns:narrow,medium,elliptical and wides beams. The high collection efficiency reaches 85% of the total flux emitted by the LEDs. Lens holders are available in white or black,and provide the proper alignment the between the LEDs and the lenses,set correct distance between the lens and LED. The lens holder can be glued to the PCB to provide a secure assembly.

The LED lenses are for CREE,Lumileds,Osram,Seoul,Nichia,Bridgelux,Citizen,Prolight LEDs.and can provide street light lens,flood light lens,lighting lens,MR16 lens,Par22 lens,Par30 lens,Par38 lens,stage lighting lens,flashlight lens,hybrid light lens. These TIR optics are used to get narrow beams with smaller LED's or allow you to use the larger source LED’s and even multi chip LED's. As with the other TIR ranges, we have a number of beams to allow you to use the same size optics for a number of beam angles.
