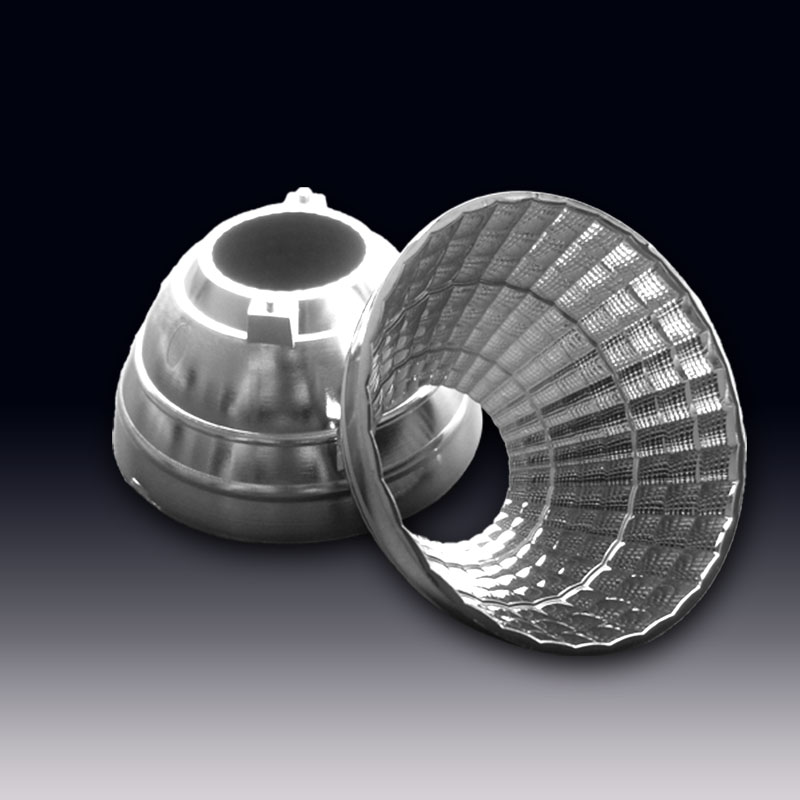

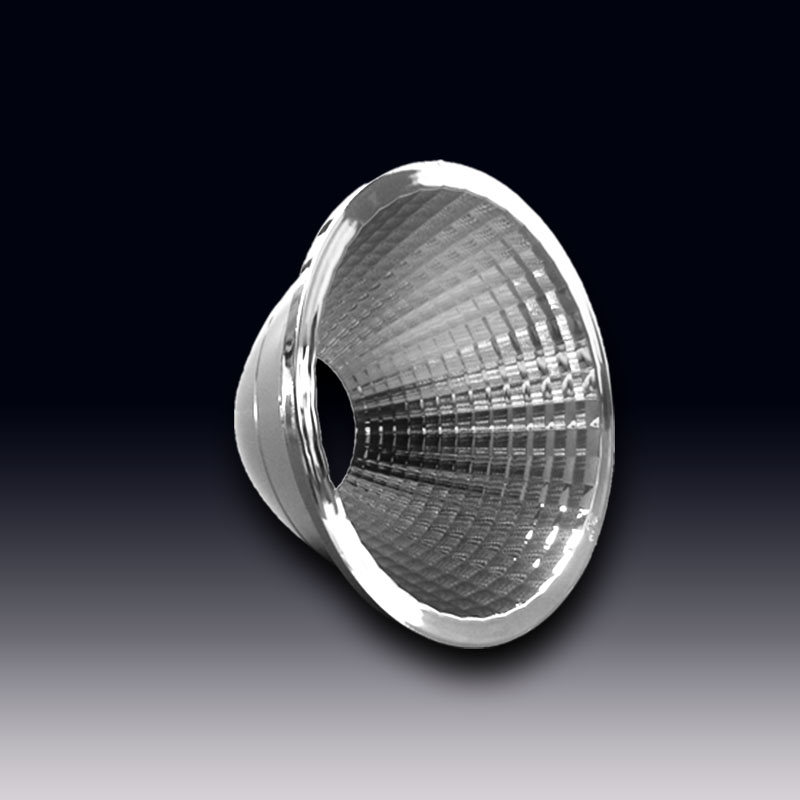

Diameter 38 to 92mm Light pipe + Aluminum reflectors for Bridgelux Citizen Cree Osram COB LEDs LES 10.5 to 28 mm

Hongxuan optics reflectors are made from aluminum and share the same clean and consistent look and beam variants throughout the entire product family. They have high heat resistance and offer premium light quality for any track- or downlight luminaires. With a wide range of compatible connectors and Hongxuan optics original accessories, they are the most up-to-date reflector offering available.Can perfectly fit COB LEDs such as Bridgelux, Citizen, Cree, Osram, Samsung, Lumileds, LEXTAR, etc.


Product Description

Light pipe + Aluminum reflectors in three different specifications with premium light quality for any track- or downlight luminaires. Suitable also for UV-C applications.

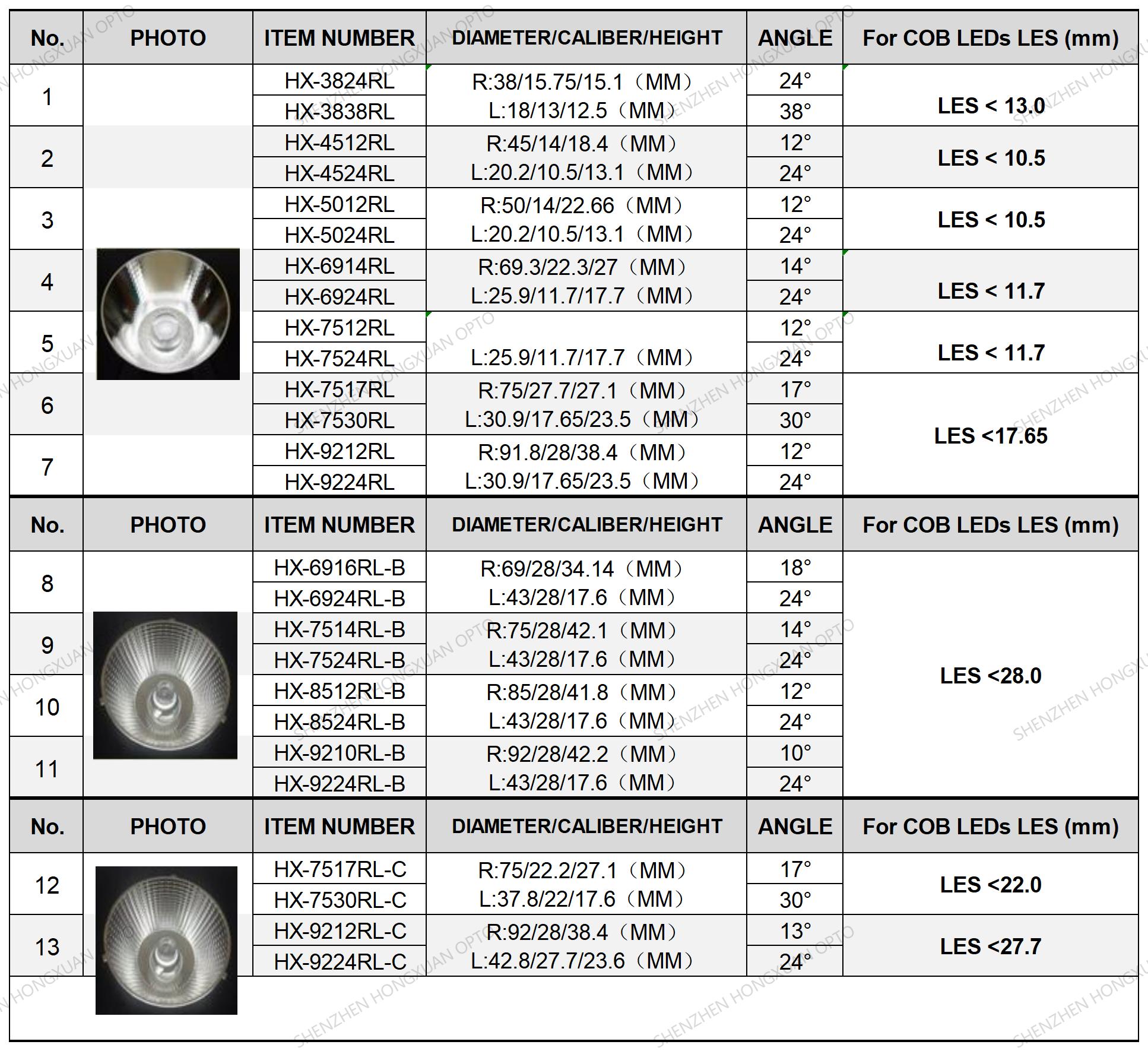

Product Selection Guide :

www.ledilens.com COB lenses and Reflectors

Product Download

Product Application

Ø17.0mm optics PMMA lens for linear lighting museums reading lights compact torches head lamps CREE XPE Seoul Z5P LG3535 OSRAM3131 LED(HX-15PH Series).D17.0x H10.0mm with holder .HX-15PH series of lenses, measuring less than 17 mm in diameter and less than 10 mm tall, All subfamilies have the same dimensions and come preassembled in lightweight durable holders with fastening tape that makes their installation fast and easy. HX-15PH family has a wide selection of beams from narrow to wide flood.

The Hongxuan(Shenzhen Hongxuan Optoelectronic Technology Co.,Ltd) lens offers low-profile lenses specifically designed for the Luxeon LEDs, OSRAM LEDs ,Bridgelux LEDs or Seoul LEDs,Cree LEDs. A software-optimized aspheric profile enables the generation of several different beam output patterns:narrow,medium,elliptical and wides beams. The high collection efficiency reaches 85% of the total flux emitted by the LEDs. Lens holders are available in white or black,and provide the proper alignment the between the LEDs and the lenses,set correct distance between the lens and LED. The lens holder can be glued to the PCB to provide a secure assembly.

The LED lenses are for CREE,Lumileds,Osram,Seoul,Nichia,Bridgelux,Citizen,Prolight LEDs.and can provide street light lens,flood light lens,lighting lens,MR16 lens,Par22 lens,Par30 lens,Par38 lens,stage lighting lens,flashlight lens,hybrid light lens. These TIR optics are used to get narrow beams with smaller LED's or allow you to use the larger source LED’s and even multi chip LED's. As with the other TIR ranges, we have a number of beams to allow you to use the same size optics for a number of beam angles.
