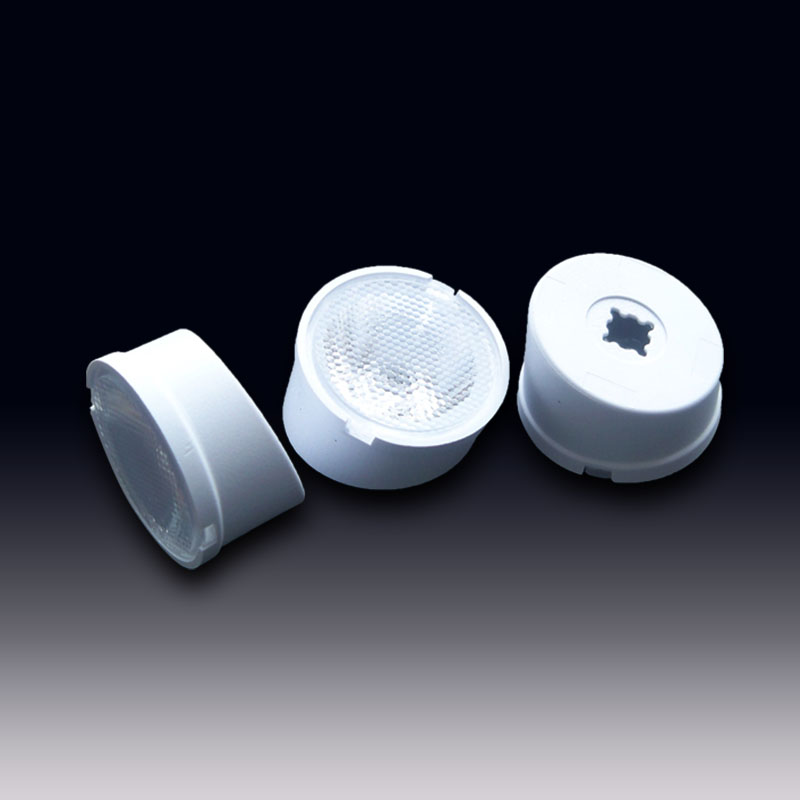

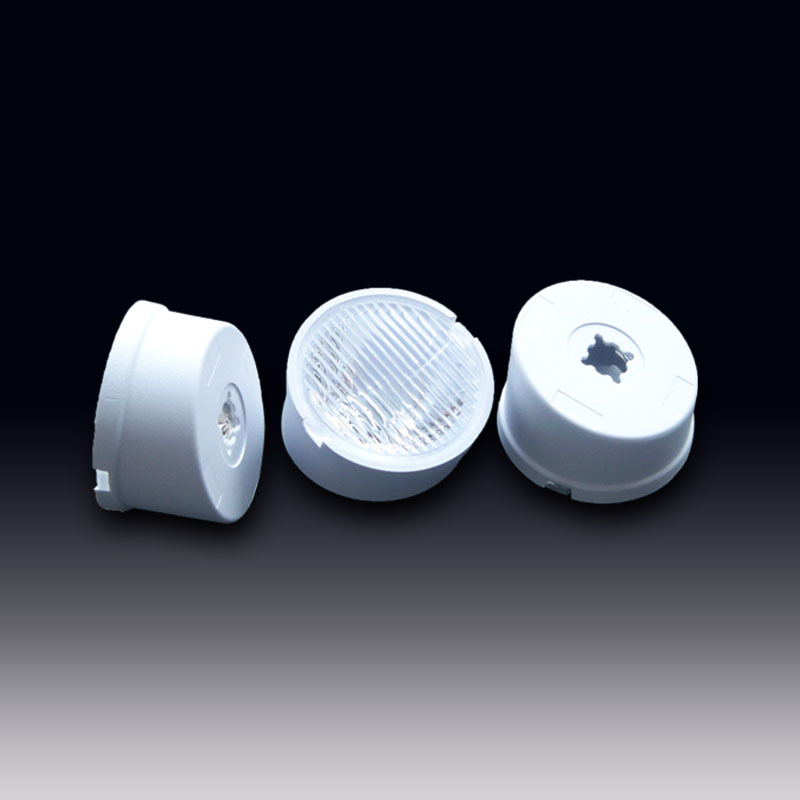

25/45/10x45 degree asymmetric beam optics PMMA PC led lens with holder and tape for billboards lighting CREE XP OSRAM Square 3030 3535 LEDs (HX-C20ASY Series)

D20.0x H13.2mm with holder. The HX-C20ASY Series of lenses, measuring less than 20.3 mm in diameter and less than 13.2 mm tall. All subfamilies have the same dimensions and come preassembled in lightweight, durable holders with fastening tape that makes their installation fast and easy. The HX-C20ASY Series family has a wide selection of beams from narrow to wide flood. Perfectly compatible with CREE XP, XT, XHP35; OSRAM OSLON Square, P7, P8; Seoul Z5P, Z5M; Luxeon T; Federal 3535; LG 3535; Samsung 3535; Nichia 119A LEDs.


Product Description

Diameter 20.3mm easily sealable TIR-lenses for up to 3535 ,3030,2525 size LED packages.
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;

Product Selection Guide :

# Part No.(Model) DIM(mm) FWHM(deg) For LEDs Material
1 HX-C20ASY-25L D20.3 * H13.2 25° (Asy) 2525,3030,3535 LEDs PC +PMMA
2 HX-C20ASY-45L D20.3 * H13.2 45° (Asy) 2525,3030,3535 LEDs PC +PMMA
3 HX-C20ASY-1045 D20.3 * H13.2 10(±5) x 45(±5) (Asy) 2525,3030,3535 LEDs PC +PMMA


Product Download

Product Application

91. Plastic Lens: 35mm Polycarbonate Lens This 35mm polycarbonate lens (focal length 50mm) offers impact resistance (10x stronger than glass) with 88% light transmittance, ideal for automotive or industrial applications. The plano-convex design focuses light, while the UV-stabilized material resists yellowing. Technical specs: 2mm thickness, heat resistance up to 120°C, and compatibility with injection molding. 92. Sapphire Glass: 50mm Sapphire Lens This 50mm sapphire glass lens (focal length 100mm) features 99% light transmittance and Mohs 9 hardness (scratch-resistant), ideal for high-temperature or harsh environments. The convex design (5mm thickness) focuses light for lasers, sensors, or medical devices. Technical specs: thermal conductivity 28W/m·K, chemical resistance, and compatibility with IR wavelengths.

The Hongxuan(Shenzhen Hongxuan Optoelectronic Technology Co.,Ltd) lens offers low-profile lenses specifically designed for the Luxeon LEDs, OSRAM LEDs ,Bridgelux LEDs or Seoul LEDs,Cree LEDs. A software-optimized aspheric profile enables the generation of several different beam output patterns:narrow,medium,elliptical and wides beams. The high collection efficiency reaches 85% of the total flux emitted by the LEDs. Lens holders are available in white or black,and provide the proper alignment the between the LEDs and the lenses,set correct distance between the lens and LED. The lens holder can be glued to the PCB to provide a secure assembly.

The LED lenses are for CREE,Lumileds,Osram,Seoul,Nichia,Bridgelux,Citizen,Prolight LEDs.and can provide street light lens,flood light lens,lighting lens,MR16 lens,Par22 lens,Par30 lens,Par38 lens,stage lighting lens,flashlight lens,hybrid light lens. These TIR optics are used to get narrow beams with smaller LED's or allow you to use the larger source LED’s and even multi chip LED's. As with the other TIR ranges, we have a number of beams to allow you to use the same size optics for a number of beam angles.
