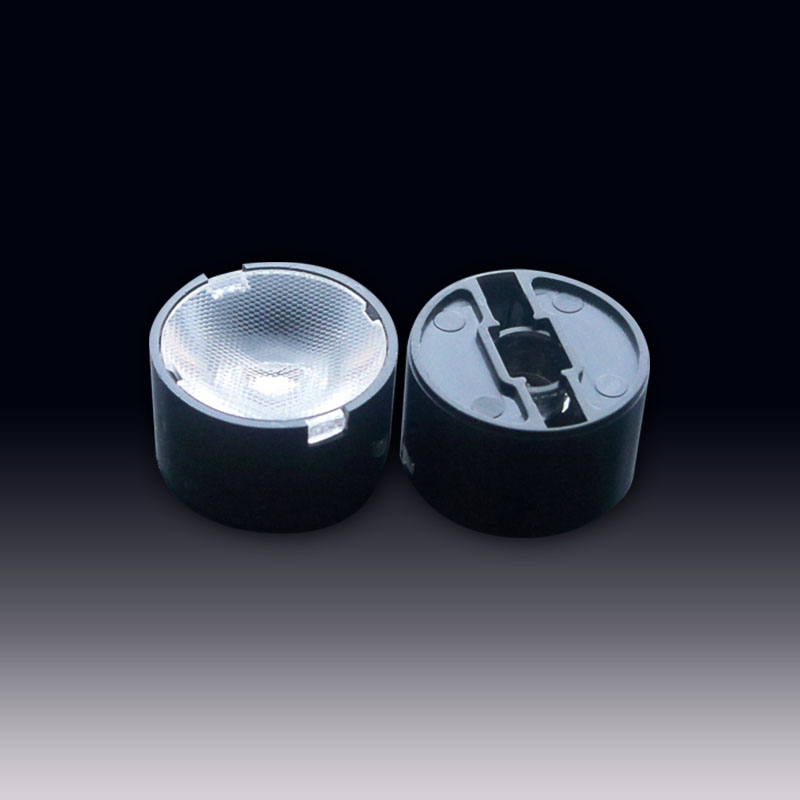

Diameter 22mm optics PMMA PC LED lens for OSRAM Golden Dragon LEDs (HX-OSH Series).

D22.0x H13.2mm with holder. The HX-OSH Series of lenses, measuring less than 22.0 mm in diameter and less than 13.2 mm tall. All subfamilies have the same dimensions and come preassembled in lightweight, durable holders with fastening tape that makes their installation fast and easy. The HX-OSH Series family has a wide selection of beams from narrow to wide flood. Perfectly compatible with OSRAM Golden Dragon LEDs. Widely used in basketball court lighting, gymnasium lighting, badminton court lighting, volleyball court lighting, underwater lighting, outdoor landscape lighting (or lens). Security and traffic display lighting (or lens).


Product Description

Diameter 22.0 mm easily sealable TIR-lenses for OSRAM Golden Dragon LEDs.

Product Selection Guide :
# Part No.(Model) DIM(mm) FA(deg) For LEDs Material
1 HX-OSH-15L D22.0 * H13.2 15° OSRAM Golden Dragon PC +PMMA
2 HX-OSH-30M D22.0 * H13.2 30° OSRAM Golden Dragon PC +PMMA
3 HX-OSH-45M D22.0 * H13.2 45° OSRAM Golden Dragon PC +PMMA
4 HX-OSH-60M D22.0 * H13.2 60° OSRAM Golden Dragon PC +PMMA
5 HX-OSH-90M D22.0 * H13.2 90° OSRAM Golden Dragon PC +PMMA
6 HX-OSH-F D22.0 * H13.2 15(±5) x 50(±5) OSRAM Golden Dragon PC +PMMA


Product Download

Product Application

93. Small Reflector for LED: 15mm Aluminum Reflector This 15mm aluminum reflector (elliptical design) enhances light output for 3mm/5mm LEDs, achieving 85% reflection efficiency. The snap-fit design mounts directly to PCBs, with heat resistance up to 150°C. Technical specs: 0.2mm thickness, 60° beam angle, and compatibility with through-hole or SMD LEDs. Used in indicators, flashlights, or small fixtures. 94. Projection Dome: 100mm Projection Dome Lens The 100mm projection dome lens (hemispherical) creates 180° panoramic projections, ideal for planetariums or immersive displays. Made from optical-grade PMMA (90% transmittance), it reduces distortion to <2%. Technical specs: 50mm height, anti-reflective coating, and compatibility with short-throw projectors. Enables 360° visual experiences in museums, theaters, or VR setups.

The Hongxuan(Shenzhen Hongxuan Optoelectronic Technology Co.,Ltd) lens offers low-profile lenses specifically designed for the Luxeon LEDs, OSRAM LEDs ,Bridgelux LEDs or Seoul LEDs,Cree LEDs. A software-optimized aspheric profile enables the generation of several different beam output patterns:narrow,medium,elliptical and wides beams. The high collection efficiency reaches 85% of the total flux emitted by the LEDs. Lens holders are available in white or black,and provide the proper alignment the between the LEDs and the lenses,set correct distance between the lens and LED. The lens holder can be glued to the PCB to provide a secure assembly.

The LED lenses are for CREE,Lumileds,Osram,Seoul,Nichia,Bridgelux,Citizen,Prolight LEDs.and can provide street light lens,flood light lens,lighting lens,MR16 lens,Par22 lens,Par30 lens,Par38 lens,stage lighting lens,flashlight lens,hybrid light lens. These TIR optics are used to get narrow beams with smaller LED's or allow you to use the larger source LED’s and even multi chip LED's. As with the other TIR ranges, we have a number of beams to allow you to use the same size optics for a number of beam angles.
