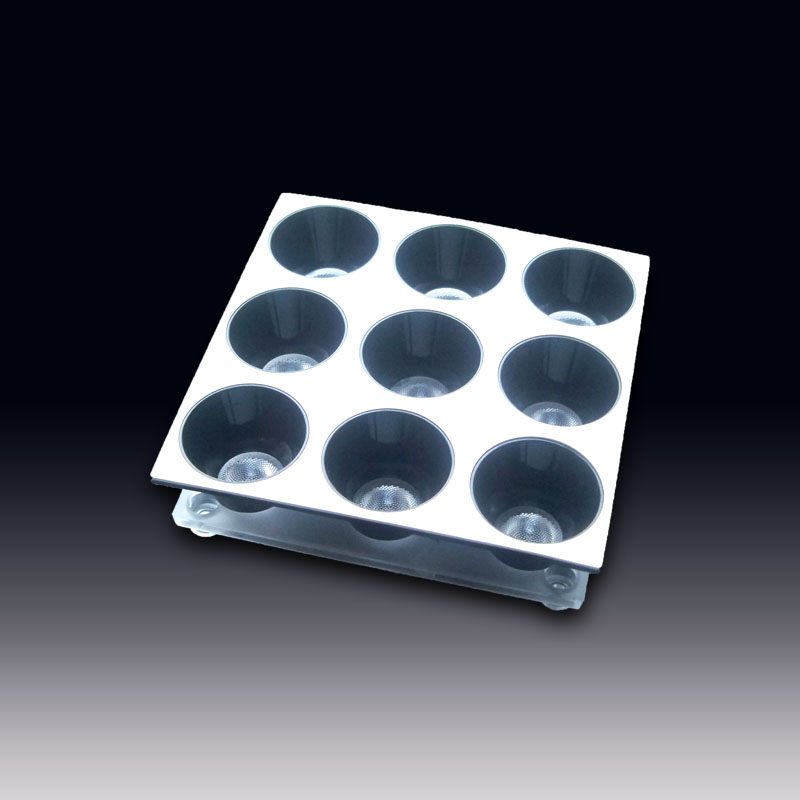

Square anti-glare ceiling light PMMA PC LED optical lens (UGR<9) compatible with CREE, OSRAM, Lumileds, Samsung 3030, 3535 LEDs (HX-XMxx Series).

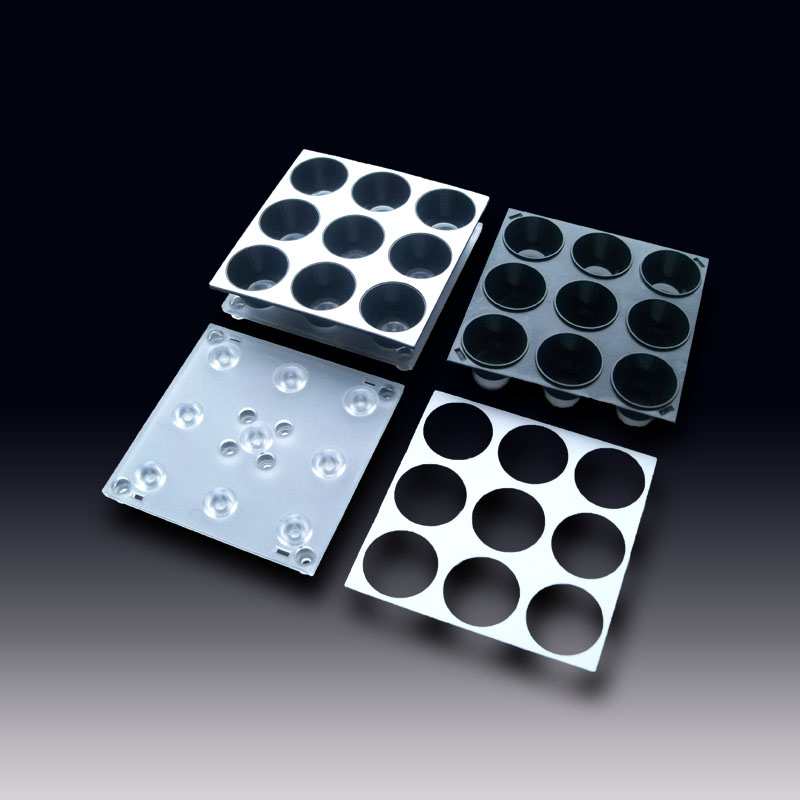

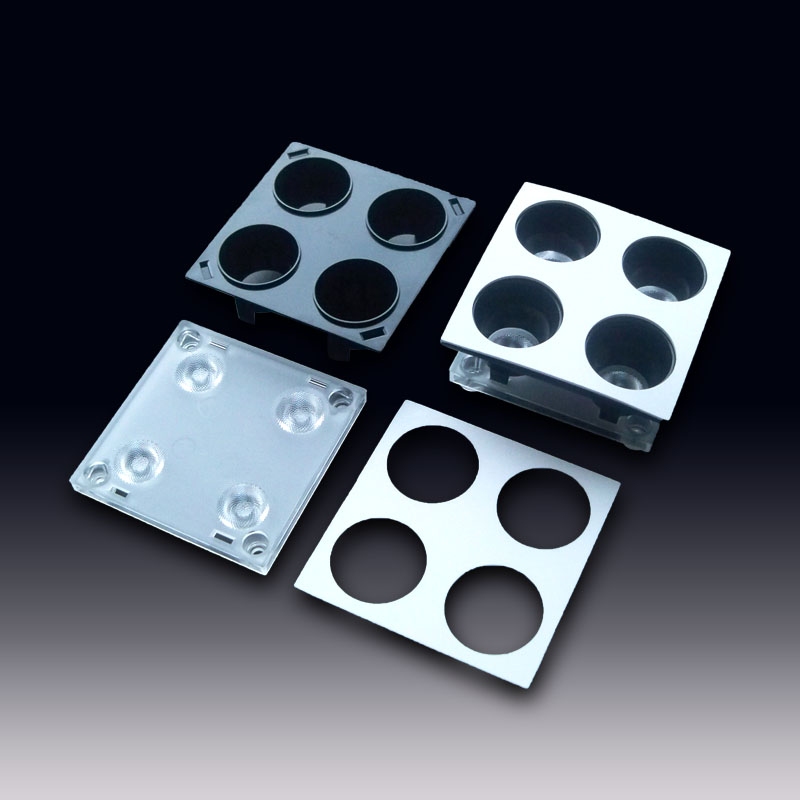

The HX-XMxx Series of optical LED lenses: 2-tone optical module, using a lens + louver + face cover design. Equipped with a white face cover that can blend perfectly with the white ceiling. Louver split design, glare rating less than 9 (UGR<9), providing more combinations. All subfamilies have the same dimensions and come preassembled in lightweight, durable holders with fastening tape that makes their installation fast and easy. The HX-XMxx Series family has a wide selection of beams from narrow to wide flood. Perfectly compatible with COB LEDs such as Bridgelux, Citizen, Cree, Osram, Samsung, Lumileds, LEXTAR, etc. Widely used in basketball court lighting, gymnasium lighting, badminton court lighting, volleyball court lighting, underwater lighting, outdoor landscape lighting (or lens), security equipment, traffic display lighting (or lens), electronic components, automotive lamp lenses, beam lamp lenses, and stage lighting.


Product Description

Square anti-glare ceiling light PMMA PC LED optical lens (UGR<9) compatible with CREE, OSRAM, Lumileds, Samsung 3030, 3535 LEDs。

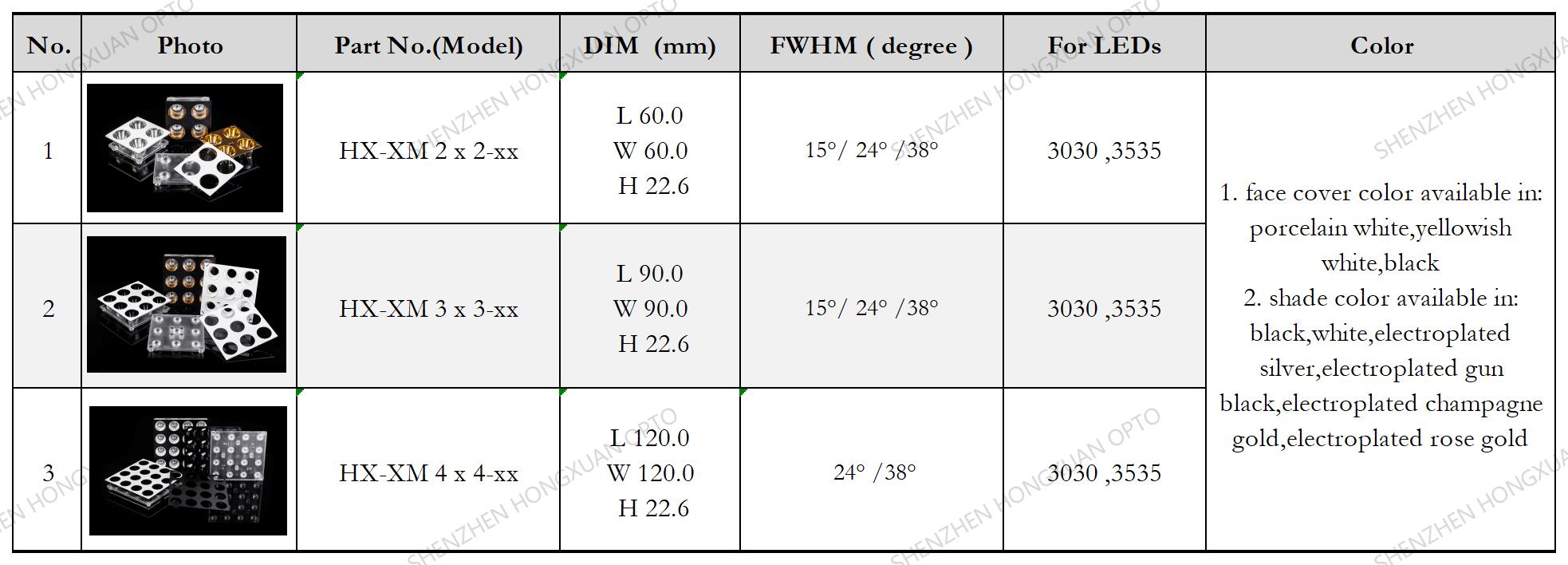

Product Selection Guide:

led lenses, Glass Lenses, Fresnel lens, Streetlight lens

Product Download

Product Application

The HX-XMxx Series of optical LED lenses: 2-tone optical module, using a lens + louver + face cover design. Equipped with a white face cover that can blend perfectly with the white ceiling. Louver split design, glare rating less than 9 (UGR<9), providing more combinations. All subfamilies have the same dimensions and come preassembled in lightweight, durable holders with fastening tape that makes their installation fast and easy. The HX-XMxx Series family has a wide selection of beams from narrow to wide flood. Perfectly compatible with COB LEDs such as Bridgelux, Citizen, Cree, Osram, Samsung, Lumileds, LEXTAR, etc. Widely used in basketball court lighting, gymnasium lighting, badminton court lighting, volleyball court lighting, underwater lighting, outdoor landscape lighting (or lens), security equipment, traffic display lighting (or lens), electronic components, automotive lamp lenses, beam lamp lenses, and stage lighting.

The Hongxuan(Shenzhen Hongxuan Optoelectronic Technology Co.,Ltd) lens offers low-profile lenses specifically designed for the Luxeon LEDs, OSRAM LEDs ,Bridgelux LEDs or Seoul LEDs,Cree LEDs. A software-optimized aspheric profile enables the generation of several different beam output patterns:narrow,medium,elliptical and wides beams. The high collection efficiency reaches 85% of the total flux emitted by the LEDs. Lens holders are available in white or black,and provide the proper alignment the between the LEDs and the lenses,set correct distance between the lens and LED. The lens holder can be glued to the PCB to provide a secure assembly.

The LED lenses are for CREE,Lumileds,Osram,Seoul,Nichia,Bridgelux,Citizen,Prolight LEDs.and can provide street light lens,flood light lens,lighting lens,MR16 lens,Par22 lens,Par30 lens,Par38 lens,stage lighting lens,flashlight lens,hybrid light lens. These TIR optics are used to get narrow beams with smaller LED's or allow you to use the larger source LED’s and even multi chip LED's. As with the other TIR ranges, we have a number of beams to allow you to use the same size optics for a number of beam angles.
