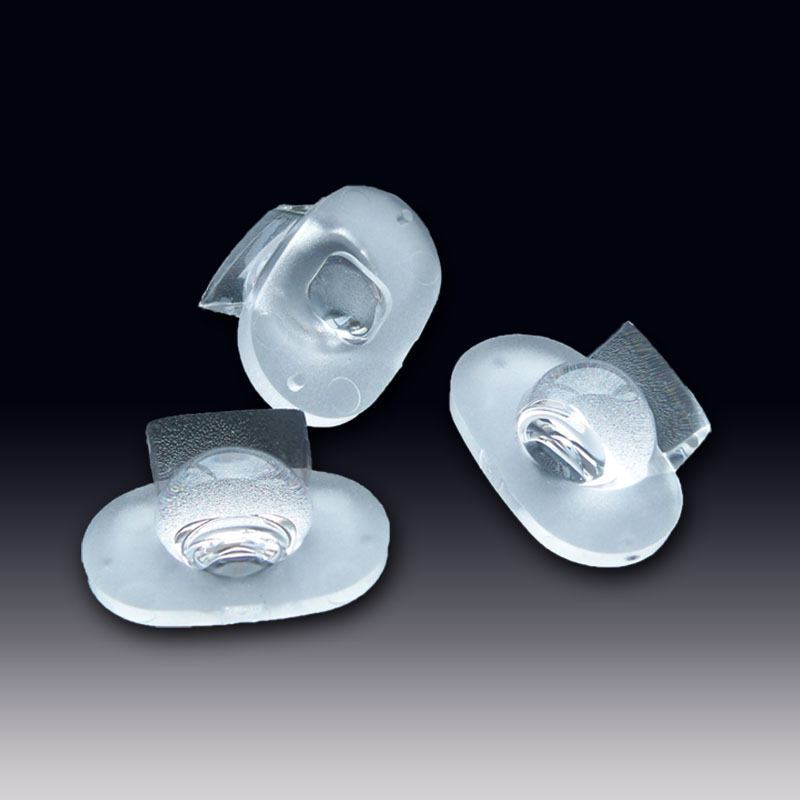

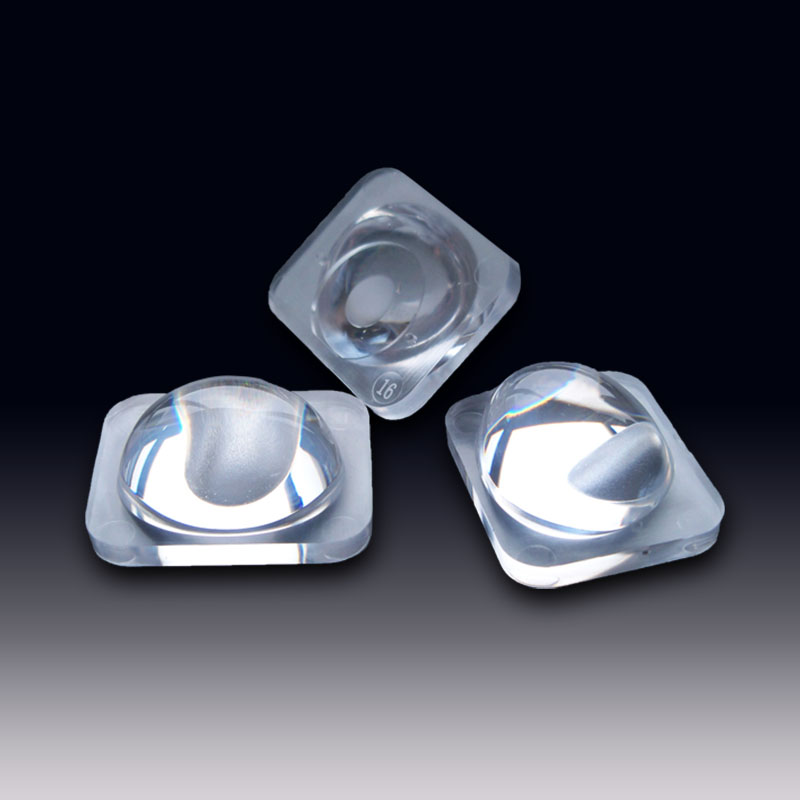

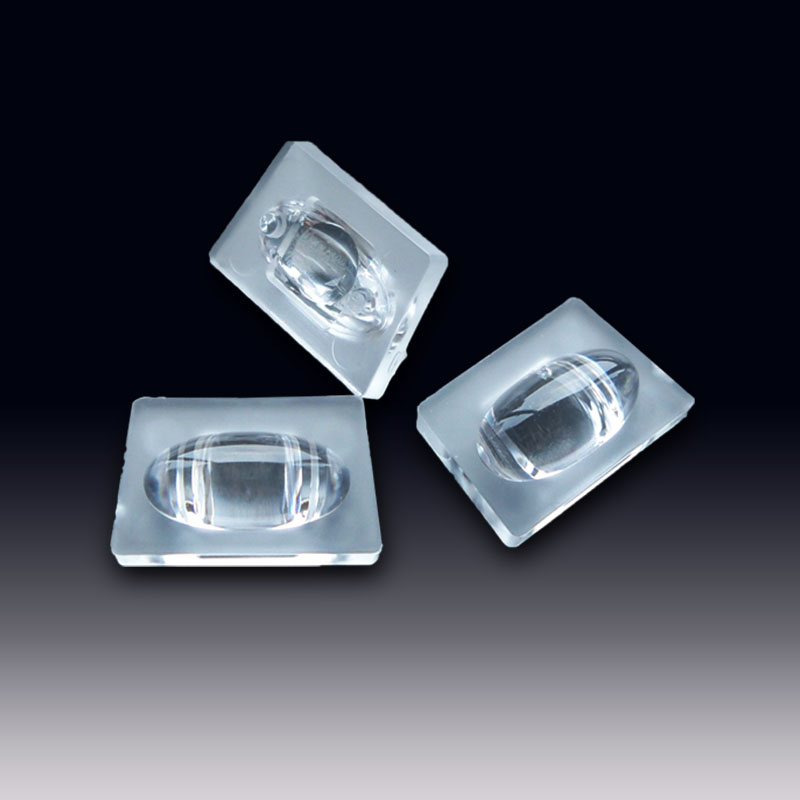

Asymmetric Linear light beam LED lens for guardrail light,suitable for CREE XP,OSRAM Square,2525, 3030,3535 LEDs (HX-HGR Series)

HX-HGR Series lenses are designed to provide precise light control and a stunning experience for urban and technical applications. Superior colour mixing and durable 2K-molded construction allow for ultimate optical performance and durability needed in various outdoor applications such as architectural lighting, wall-washing, obstruction lights, stage lighting, or accent lighting. They are optimized for single and clustered high-power LEDs.


Product Description

Asymmetric Linear light beam LED lens for guardrail light easily sealable TIR-lenses for up to 3535 ,3030,2525 size LED packages.
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;


Product Selection Guide :
# Part No.(Model) DIM(mm) FWHM(deg) For LEDs Material
1 HX-HGR-10130 L23.0 W17.0 H10.5 10(±5) x 130(±5) 2525 3030 3535 4040 5050 LED PC
2 HX-HGR-15160 L18.5 W12.0 H6.0 15(±5) x 160(±5) 2525 3030 3535 4040 5050 LED PC
3 HX-HGR-30100 L23.54 W16.22 H8.57 30(±5) x 100(±5) 2525 3030 3535 4040 5050 LED PC
4 HX-HGR-10100 L30.4 W24.8 H15.0 10(±5) x 100(±5) 2525 3030 3535 4040 5050 LED PC


Product Download

Product Application

99. 3535 RGBW Lens: 4-in-1 Color Mixing Lens The 3535 RGBW lens (10mm x 10mm) combines four channels (red, green, blue, white) into a single 120° beam, ideal for dynamic color lighting. The PMMA structure (92% transmittance) ensures uniform color mixing, with heat resistance up to 80°C. Technical specs: compatible with 3535 RGBW SMDs, snap-in installation, and anti-yellowing treatment. Used in stage lighting, architectural facades, or smart home systems. 100. Optics for Cree XPH 352 Hi LED Designed for Cree XPH 352 Hi LEDs, this optical system includes a 25° collimator lens (30mm diameter) and aluminum reflector, enhancing light output by 85%. The PMMA lens (92% transmittance) and 95% reflective aluminum create a precise beam for spotlights or projectors. Technical specs: heat resistance up to 90°C, snap-fit mounting, and compatibility with 10W-20W Cree LEDs.

The Hongxuan(Shenzhen Hongxuan Optoelectronic Technology Co.,Ltd) lens offers low-profile lenses specifically designed for the Luxeon LEDs, OSRAM LEDs ,Bridgelux LEDs or Seoul LEDs,Cree LEDs. A software-optimized aspheric profile enables the generation of several different beam output patterns:narrow,medium,elliptical and wides beams. The high collection efficiency reaches 85% of the total flux emitted by the LEDs. Lens holders are available in white or black,and provide the proper alignment the between the LEDs and the lenses,set correct distance between the lens and LED. The lens holder can be glued to the PCB to provide a secure assembly.

The LED lenses are for CREE,Lumileds,Osram,Seoul,Nichia,Bridgelux,Citizen,Prolight LEDs.and can provide street light lens,flood light lens,lighting lens,MR16 lens,Par22 lens,Par30 lens,Par38 lens,stage lighting lens,flashlight lens,hybrid light lens. These TIR optics are used to get narrow beams with smaller LED's or allow you to use the larger source LED’s and even multi chip LED's. As with the other TIR ranges, we have a number of beams to allow you to use the same size optics for a number of beam angles.
