14.9x14.9 mm square PMMA PC optics LED lens for CREE MX-3, MX-6, 5050 LEDs (HX-F15 Series).

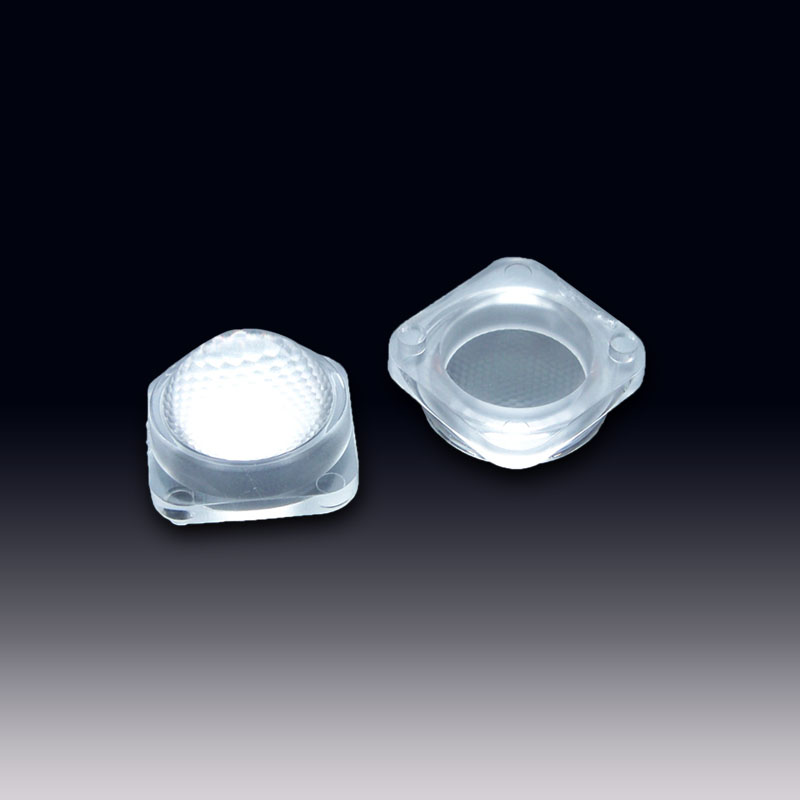

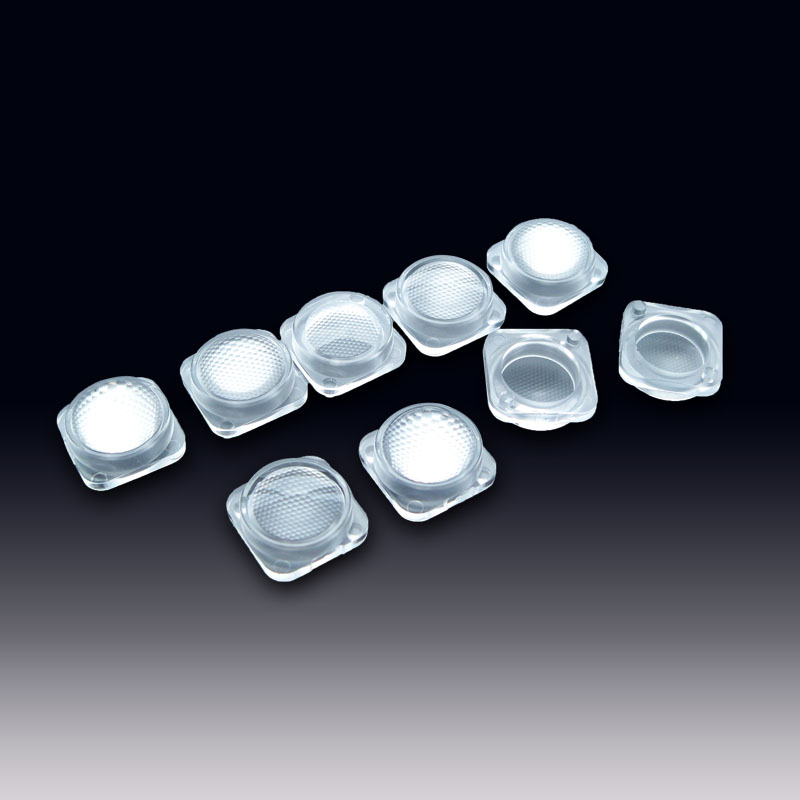

14.9x14.9 mm square PMMA PC optics LED lens with two pins. The HX-F15 Series of lenses: all subfamilies have the same dimensions and come preassembled in lightweight, durable holders with fastening tape that makes their installation fast and easy. The HX-F15 Series family has a wide selection of beams from narrow to wide flood. Perfectly compatible with CREE XP, XT, XHP35; OSRAM OSLON Square, P7, P8; Seoul Z5P, Z5M; Luxeon T; Federal 3535; LG 3535; Samsung 3535; Nichia 119A, 5050 RGBW LEDs. Widely used in basketball court lighting, gymnasium lighting, badminton court lighting, volleyball court lighting, underwater lighting, outdoor landscape lighting (or lens). Security and traffic display lighting (or lens).


Product Description

14.9 mm easily sealable lenses for up to SMD 5050 size LED packages.
For example :
CREE MX-3 ,MX-6 ;
5050 LEDs;

Product Selection Guide :

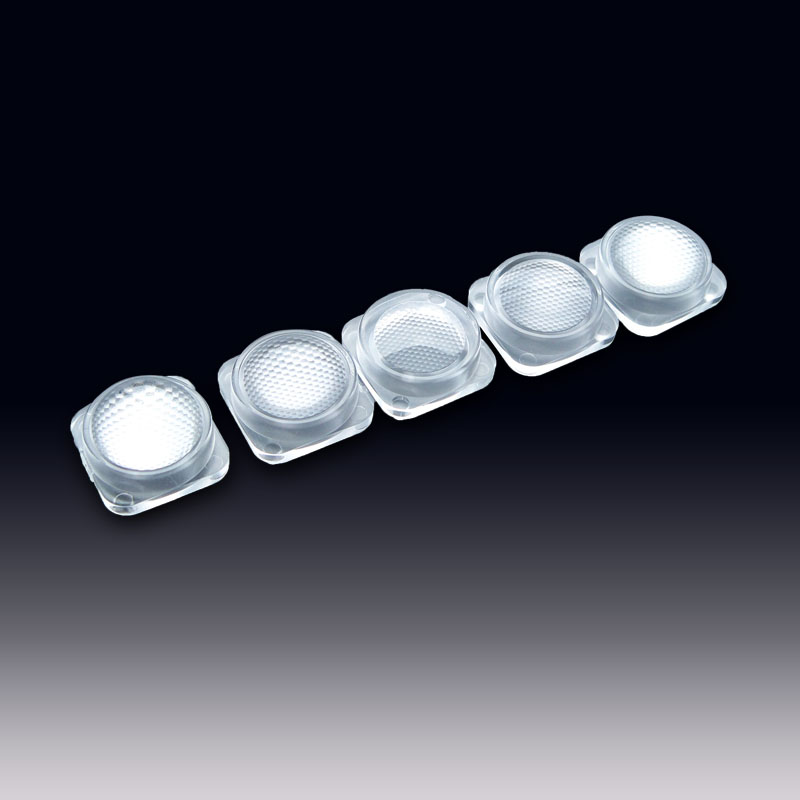

# Part No.(Model) DIM(mm) FA(deg) For LEDs Material
1 HX-F15-20L L14.9 W14.9 H11.6 20° MX-3,MX-6,5050 LEDs PC
2 HX-F15-30L L14.9 W14.9 H9.59 30° MX-3,MX-6,5050 LEDs PC
3 HX-F15-45L L14.9 W14.9 H8.2 45° MX-3,MX-6,5050 LEDs PC
4 HX-F15-60L L14.9 W14.9 H7.0 60° MX-3,MX-6,5050 LEDs PC
5 HX-F15-90L L14.9 W14.9 H5.4 90° MX-3,MX-6,5050 LEDs PC


Product Download

Product Application

1. Lens: 365nm UV Optical Lens Designed for UV curing applications, this 365nm UV lens features a 50mm diameter borosilicate glass structure with anti-reflective coating, achieving 98% transmittance in the UV spectrum. The convex design (focal length 100mm) focuses UV light for adhesive curing, ink drying, or resin hardening. Technical specs: ±0.05mm surface precision, thermal shock resistance up to 200°C, and compatibility with 3W-10W UV LEDs. Ideal for PCB manufacturing, 3D printing, or automotive coating lines. 2. Magnifying Glass: 15X Jeweler’s Loupe This 15X jeweler’s loupe offers distortion-free magnification with a 25mm optical glass lens, perfect for gemstone appraisal or coin grading. The double-lens design reduces chromatic aberration, while the foldable metal frame ensures portability. Technical details: 10mm working distance, 85g weight, and scratch-resistant coating. Comes with a leather pouch for protection, suitable for professional jewelers or hobbyists.

The Hongxuan(Shenzhen Hongxuan Optoelectronic Technology Co.,Ltd) lens offers low-profile lenses specifically designed for the Luxeon LEDs, OSRAM LEDs ,Bridgelux LEDs or Seoul LEDs,Cree LEDs. A software-optimized aspheric profile enables the generation of several different beam output patterns:narrow,medium,elliptical and wides beams. The high collection efficiency reaches 85% of the total flux emitted by the LEDs. Lens holders are available in white or black,and provide the proper alignment the between the LEDs and the lenses,set correct distance between the lens and LED. The lens holder can be glued to the PCB to provide a secure assembly.

The LED lenses are for CREE,Lumileds,Osram,Seoul,Nichia,Bridgelux,Citizen,Prolight LEDs.and can provide street light lens,flood light lens,lighting lens,MR16 lens,Par22 lens,Par30 lens,Par38 lens,stage lighting lens,flashlight lens,hybrid light lens. These TIR optics are used to get narrow beams with smaller LED's or allow you to use the larger source LED’s and even multi chip LED's. As with the other TIR ranges, we have a number of beams to allow you to use the same size optics for a number of beam angles.
